Features
Flat Floors
Flat floors and taller, wider cab doors allow firefighters to get in and out quickly at the scene, creating more floor space and a safer cab environment for the crew.
1 of 142
Forward Cab Roof Design
Forward-roof cab design with a 10″ raised roof offers more head room and better line of site.
2 of 142
Heavy-Duty Aluminum Dash
Spartan’s three-piece heavy duty aluminum dash is built to withstand the test of time with an ergonomic design and durable finish. Easily access and service all components and switches through a center panel located on top of the dash.
3 of 142
Custom Switches and Controls
Controls and switches are conveniently located at arm level for safe activation and can be customized to meet your response needs.
4 of 142

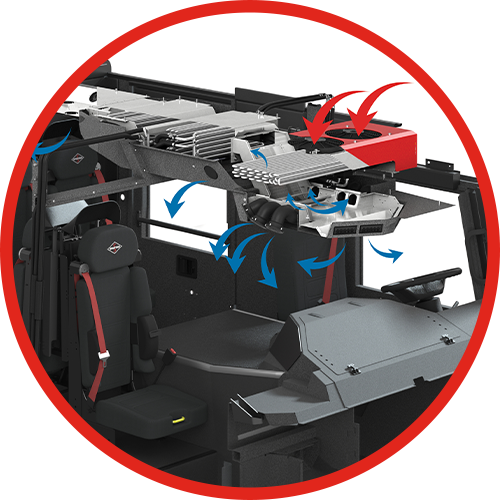

Central A/C & Heat
Centrally located, the tunnel mount system is designed to deliver superior cooling and heating for the entire crew.
5 of 142
Manueverability
Designed to handle heavy duty applications with a low center of gravity and front axle that is located behind the driver and officer delivers improved maneuverability on scene.
6 of 142
Simplified Pump Access
Tilt the cab to easily perform service and maintenance through the front of the body.
7 of 142
Smart Storage
Optional storage around the wheel wells increases the amount of usable compartment space. Smart Storage compartments were designed to free up body compartment space and bring equipment to a more usable height.
8 of 142
NXT Pump Design
The pump is positioned at the rear of the cab under the seat extension, creating a safe and more ergonomic work environment with maximum performance capabilities.
9 of 142
Smart View Panels
Smart view panels provide optimum viewing angles in all light conditions for the operator.
10 of 142
Vertical Swing Handles
Vertically-oriented swing handles located in the L1 compartment position the operator away from hose inlets and discharges and make opening and adjusting valves easier.
11 of 142
Purpose-Built
Pump placement is determined to ensure drive-line alignment and durability.
12 of 142
75′ Aerial Water Monitor
When positioned at the tip, the water monitor can be elevated at 30 degrees higher than the elevation of the ladder.
13 of 142
Maximized Space Usage
The IPS-NXT maximizes available space inside the cab and body compartments.
14 of 142
Maximum Pump Capacities
Pump ratings from 750 to 2250 (single and 2-stage pumps) including ratings to 1500 GPM over 9,000 ft. elevation and 1250 GPM over 11,000 ft. elevation.
15 of 142
Maximum Power & Space
Configurations available with a powerful 500 HP engine in a 94″ wide cab or up to 600 HP in a 99″ wide cab.
16 of 142
Clean Climb
A wide, unobstructed walkway allows firefighters to climb with confidence with wires routed tight along handrails and out of the way, making all walking areas clear of hoses and harnesses.
17 of 142
Wide Unobstructed Aerial Walkway
A wide unobstructed aerial walkway with extra high handrails provides a safe and easy climbing environment for fire fighters.
18 of 142
Spacious Platform Working Area
A modular platform with 29 sq. ft. of working area and 7.5 cu. ft. of storage provides a safe and spacious work environment. An open grate non-slip aluminum floor prevents water and ice build up.
19 of 142
Angled Platform Corners
Angled platform corners offer a safe work environment with 8″ of outer walking surface that allows access from the front, sides, and at angles to the landing zone.
20 of 142
Minimal Platform Overhang
Minimal platform overhang allows for a shorter overall length, less weight, and less swing swing increasing maneuverability in tight areas.
21 of 142
Integral Torque Box
An integral torque box frame allows for a low center of gravity and safe ergonomic access to ground ladders and equipment.
22 of 142
Ladder Storage
Store up to 190 ft. of ground ladders with pull out hose and equipment tray.
23 of 142
Smart Reach™ Control Console
Next-generation of electric and hydraulic aerial controls features an easy-to-read, 11-inch touchscreen with intuitive controls and a sleek, new pedestal base to provide a safe operational parameter in any situation.
24 of 142
Multi-Stance™ Technology
Three unique stabilizer zones provide operational flexibility and simplified aerial operations. The system identifies the stabilizer spread and automatically identifies the proper load chart to keep you safe.
25 of 142
Compartment Storage
The Ladder Tower body design allows for up to 300 cu. ft. of compartment space for all your equipment needs.
26 of 142
Dynamic Load Chart Display
Dynamic load charts display exactly the position of the aerial at any point and time and allow the operator to see at a glance the allowable loads for the entire range of elevation and how it changes as the ladder is positioned.
27 of 142
Proven Legacy Ladder Design
Designed with a proven heavy-duty ladder structure that has withstood the test of time and continues to deliver strength that can be trusted day in and day out.
28 of 142
TDA Clean Climb
A wide, unobstructed walkway allows fire fighters to climb with confidence with wires routed tight along the handrails and out of the way, making all walkways clear of hoses and harnesses.
29 of 142
Clean Aerial Tip
All controls and devices are located in a recessed location on the ladder, keeping the removeable egress and climbing area clean and safe for the fire fighter.
30 of 142
Versatile Outrigger System
Our H-style outrigger system provides strength and stability under all road and terrain conditions. LT’s effective “out and down” design automatically locks into supporting position with no locking pins to place or remove. The footplate swivels in all directions, providing superior holding on uneven terrain.
31 of 142
Ladder Slide Pads
Load Transfer Pads and Front, Rear & Side Slide Pads, designed with accessibility in mind for easy inspection and replacement, reduce friction and ensure smooth ladder operation.
32 of 142
Best-in-Class Hydraulic System
Best in class CAN controllers give the operator the ability feather the device with much more accuracy and precision that they could ever achieve with direct hydraulic valves and levers.
33 of 142
Ladder Tower Egress
Designed with an unobstructed opening for easy access, the bolt-on removable egress can be easily replaced. Available in various lengths.
34 of 142
Aerial Wheel Well Storage
Wheel well storage increases the amount of usable compartment space and brings SCBA’s and fire extinguishers to a more accessible height.
35 of 142
Bumper Ground Clearance
Front bumper options are designed around strength and ground clearance for rough terrain.
36 of 142
Low Ground Ladder Storage
Fully enclosed ground ladders are located just 40″ from the ground, providing safe and ergonomic access to up to 170 ft. of storage.
37 of 142
Safe and Easy Turntable Access
Wide egress steps and walkways provide easy access to and from the ladder.
38 of 142
Efficient Space Design
Body designs are configured to provide maximized compartments pace for equipment, ladder and hard-suction storage.
39 of 142
12′ and 14′ Narrow Outrigger Spread
Our H-style outrigger system provides strength and stability under all road and terrain conditions. LT’s effective “out and down” design automatically locks into supporting position with no locking pins to place or remove. A 12′ outrigger spread with quick and simple deployment delivers industry leading performance.
40 of 142
Excellent Horizontal and Vertical Reach
Built with up to 100,000 psi yield strength steel that can be depressed as low as 7º below horizontal or as high as 78º above horizontal. This allows firefighters to reach taller structures and have easy access to the ladder when lowered to ground level.
41 of 142
Superior Grade Operations
Set-up and operate on grades of up to 20% with unrestricted performance. The footplate swivels in all directions, providing superior holding on uneven terrain, and the 24″ X 24″ auxiliary ground plates provide additional load distribution on soft ground.
42 of 142
Low Travel Height
The ladder sections are designed to provide a low profile and travel height, making it easy to fit into historic firehouses and under bridges.
43 of 142
Greater Control and Stability
The tandem axle design delivers better suspension and braking capabilities with
additional carrying capacities resulting in a safer apparatus with greater control
and stability.
Front Bumper Options
Custom turret and winch installations along with heavy-duty and ergonomic front bumper extensions allow you to customize the bumper to your needs.
45 of 142
Powerful Pumps
Auxiliary pump options are designed for easy maintenance. Controls are conveniently located on the main pump panel and inside the chassis cab.
46 of 142
Control Technology
The Omni Pump System can be integrated into the aerial turn table controls, giving
the operator the ability to control both the aerial and the pump operations from a
single location
Safe. Strong. Stable.
Square and rectangular tubing provide a large ladder cross section for superior rigidity, with longer weld joints for increased ladder strength. Tubular Welded Steel Torque Box Mainframe stiffens the backbone of the apparatus to provide a rigid and durable mounting base for the aerial and body. This helps absorb the overturning loads generated by the aerial and distributes them evenly to the outriggers.
48 of 142
Pump Operators Panel
The pump operators panel is located inside the L2 compartment. Choose from standard controls or the optional Omni Pump System shown.
49 of 142
Maximum Pump Capabilities
The non-proprietary NXT pump offers up to 2,250 GPM along with added room and storage in the cab and body.
50 of 142
Ease of Service
The NXT 110 features non-proprietary chassis, pump, and aerial components and standard parts, making reordering easy and efficient. Simplified service access for the pump and aerial device make for easy maintenance.
51 of 142
Maximized Space Usage
The unique packaging of the NXT 110 offers maximum storage space inside the cab and body compartments.
52 of 142
Custom Top Mount Controls
Achieve maximum visibility with a top mount configuration and controls where you need them to get the job done.
53 of 142
Tiller Cab Visibility
Our tiller cab provides superior visibility to the operator with its unique design.
54 of 142
Pump Module Storage
Maximize every inch of pump module space with speedlays, storage under the steps, and custom tool mounting.
55 of 142
Subframe Insulators
Exclusive DVS subframe isolators and full, subframe-length Dura-Ride™ rubber isolation allow the body and tank to flex independently of the frame, reducing road stress to the body.
56 of 142
Tractor Drawn Aerial Storage
Generous compartment space provides ample storage for ladders and equipment.
57 of 142
Durable Framework
All tankers are built with our exclusive Tor-Max and Tri-Max body structure delivering extra compartment space, reduced torsional resistance and improved structural stability.
58 of 142
TDA Manueverability
Highly maneuverable with increased on-scene access to easily navigate narrow streets and congested urban environments.
59 of 142
Platform Access Gates
Two swing-in access gates allow stair chair access and provide optimal working area in varying fire ground scenes.
60 of 142
Sliding Platform Controls
Sliding platform controls are mounted on the front of the platform allowing the operator to re-position the console to the left, center, or right side.
61 of 142
Snorkel Platform
The platform provides a rock-solid work space for firefighting and rescue operations.
62 of 142
Wide Scrub Area
The 93′ MM Platform provides a dramatically smaller aerial swing radius, which is critical in narrow operating areas and when operating around trees, buildings, utility poles, and electric lines.
63 of 142
Obstruction Detection System
Detect obstacles in the potential path of each outrigger when approaching fire scene. A display inside the cab indicates safe deployment areas, allowing firefighters to quickly and safely set the truck up on tight congested scenes.
64 of 142
93′ MM Platform Outrigger System
Four (4) H-style outriggers provide best-in-class leveling capabilities on steep and uneven terrain. Independent controls for horizontal and vertical extension allow set-up around obstacles such as curbs, trees, parked cars, and buildings.
65 of 142
Front Bumper Stabilizers
Front bumper stabilizers allow unrestricted operation over front of cab and provide stability on rough or steep terrain.
66 of 142
Rear Mount Pump
Rear mount pumpers provide an added level of flexibility with versatile pump control and discharges locations that provide a safe work environment with high visibility of the scene.
67 of 142
Low Clearance
An extremely low overall height of 10’8″ provides a lower center of gravity for improved ride and handling.
68 of 142
Dual Venting
Dual overflows provide extra venting for both faster fill and dump rates, plus they minimize the possibility of damaging the tank during fill operations.
69 of 142
Joystick Control
Simple state-of-the art aerial device controls ensure ease of operations.
70 of 142

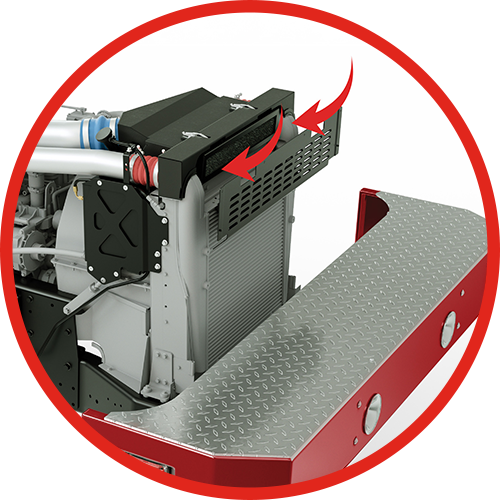

High Air Intake
Spartan’s heavy-duty high air intake mitigates the risk with fewer connections and places the air filter and ember separator above the radiator and turbo connection. Air filter replacement can be easily done without tools and without compromising the clean side of the intake system.
71 of 142
Enclosed Pump Panel
Operate the pump in a controlled environment and layout the pump controls where you need them to get the job done.
72 of 142
Dump Options
Move water at remarkable speed from main tank to dump tank, 3,000-gallons in less than two minutes. Side and rear dump chutes available in manual, electric, or air operated.
73 of 142
Forward Cab Roof Design
All raised roof applications include forward roof protection that extends over the driver and officers seating offering more headroom and better line of site.
74 of 142
Rugged Outer Tank Walls
Rugged 3/4″ outer tank walls with no additional poly makes for a strong and lighter tank leaving more capacity for water and equipment.
75 of 142
Custom Cab Storage
Customize the interior of your Spartan cab to create a work environment that meets your needs.
76 of 142

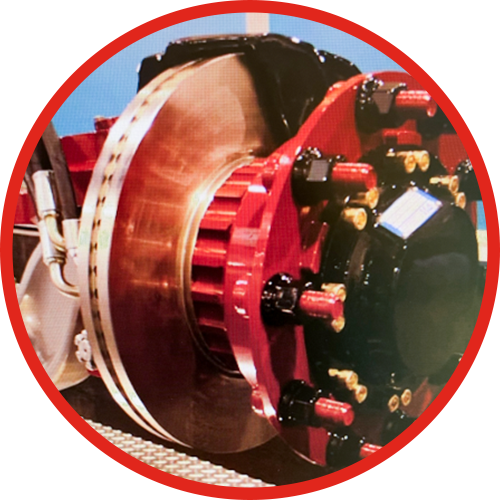

Independent Front Suspension
Spartan’s 20k and 24k independent front suspensions provide superior cramp angles with full air suspension available with a range of tire sizes designed for easy service and maintenance.
77 of 142
SGO9 Auxiliary Power Unit – EMISSION-Reduction Technology
Our exclusive SG-09 Green Auxiliary Power Unit (APU) is designed to handle the rigors of the fire service and reduces the operation of the chassis engine while providing all electrical and HVAC capabilities.
78 of 142
Versatile Pump Controls
Versatile pump controls allow you to place them where you need them most on the truck.
79 of 142
Transverse Compartment Storage
Transverse storage in L1 and R1 compartments allow for maximized storage capacity.
80 of 142
Spartan One-Touch CAFS
Allows for easy control and operation without manual processes or calculations. Once the pump is engaged and water is flowing, state-of-the-art electronics monitor components in a ready state. The system injects foam into the water and air into the appropriate discharge, sensing foam/water flow and eliminating slug flow.
81 of 142
Smart Step Compartment Access
Incorporate a slide out step at the pump panel, rear, or side of body to create a safer work environment.
82 of 142
Custom Pump Panel Design
Puts the department in control of the panel operations to ensure the placement is exactly right.
83 of 142
Stainless Steel Plumbing
The plumbing manifold is simple and compact, engineered for efficient flow and quick service.
84 of 142
LED Lighting
All warning and compartment lights are LED’s for long service life, high visibility, and extreme energy savings.
85 of 142
Compact Pump Design
Wildland apparatus pump options are centered around delivering maximum pressure and volume where you need it, in a compact space to keep your wheelbase short.
86 of 142
Convenient Storage
Spacious compartments conveniently located on the back and the side of the tanker provide ample room for storing gear.
87 of 142
User-Friendly Pump Panels
Custom-designed pump panels are easy to use for simplified operation.
88 of 142
Storage Options
Custom porta-tank, static ladder, electric, or hydraulic racks.
89 of 142
110′ Aerial Water Monitor
When positioned at the tip, the water monitor can be elevated at 30 degrees higher than the elevation of the ladder.
90 of 142
Waterway Controls
Re-positioning the waterway can be done easily with the flip of a mechanical lever.
91 of 142
Simple Controls
Direct hydraulic control valves and hard-wired electric switches provide simple troubleshooting and worry-free operation.
92 of 142
Safe & Easy Access
Wide egress steps and walkways provide easy access to and from the ladder.
93 of 142
Parapet Ladder Attachment
Offers an optional ladder attachment to help firefighters safely and securely climb to and from the platform and a building parapet or flat roof.
94 of 142
Bi-fold Platform Doors
Two bi-fold doors at the front of the platform provide easy access and allow responders to easily egress to and from the platform. A hinged safety bar is located at each entrance for additional safety during rescue operations.
95 of 142
Platform Leveling System
Spartan’s platform leveling system electronically monitors the position of the platform relative to the earth and not the position of the apparatus.
96 of 142
Aerial Controls
Control station at rear provides for one-person operation. Controls include stabilizer, boom and monitor, high idle, and boom lighting.
97 of 142
Boom Mounted Rescue Ladder
Sturdy, boom mounted rescue ladder provides full aerial rescue operational capability.
98 of 142
Boom Controls
State-of-the-art, electric-over-hydraulic joystick controls with a hinged rear control panel provide the ability to operate the boom and turntable with easy access for service.
99 of 142
Unique Dual Waterways
A waterway is mounted on each side of the lower boom section and feed a single 4” internal aluminum waterway in the upper boom section.
100 of 142
A-Style Stabilizers
A-style stabilizers lock themselves in operating position behind the rear wheels allowing for a narrow spread of 11’9” for easy setup in tight streets, alleys and cul-de-sacs.
101 of 142
Excellent Monitor Sweep
Hydraulically operated monitor/nozzle provides for a 90° (45° side-to-side) lateral sweep and 240° vertical travel (+/- 120°).
102 of 142
Lower Travel Height
Boom is stowed efficiently to provide a low profile and lower travel heights, delivering an added dimension to the fire attack capability of a pumper without a sginificant increase in the overall size of the apparatus.
103 of 142
AL-11 Aerial Logic
A totally integrated system that provides instant feedback on a ladder’s extension, location, retraction, angle, load and breathing air system status, as well as J1939 engine information.
104 of 142
Removable Egress
Bolt-on removable egress for easy replacement. Available in two lengths.
105 of 142
Electronic Positional Waterway
Never climb another ladder just to re-position the master stream. Our patented electric positional waterway lets the operator position the waterway to either Rescue or Water Tower mode with a simple one-step procedure from the turntable.
106 of 142
Premier Foundation
Our galvanized steel chassis frame rails provide strength and integrity while resisting rust and corrosion. They are built to last with low maintenance costs—holding up to the rigors and punishment dished out by hard-working fire departments.
107 of 142
Multiple Storage Options
Optimizes every square inch of your vehicle, including: hydraulic rescue tool systems, breathing air cascade systems, light towers, generators, power take off hydraulics, shelves, trays, tool boards, custom bumper configurations, transverse compartments, under body storage reels, coffin, cab and command areas.
108 of 142
Custom Rear Configurations
Provides flexible access with customized design of rear access doors, built-in staircase, rear access ladder.
109 of 142
Custom Interior Configurations
Optimized for performance with customized options for built-in bench seating, built-in desks, command areas, cabinet configurations and cargo net storage.
110 of 142
Rescue Tool Mounting
Allows you to define where and how your tools are most useful.
111 of 142
Hot Dip Galvanized Stabilizer Beams
Stabilzer beams are hot dip galvanized for maximum protection from road salt and other corrosives.
112 of 142
LED Rung Lights
Smeal offers blue rung lighting for superior visibility in the aerial climbing area.
113 of 142
12 Function Wireless Remote
Easily operate all the basic aerial and monitor functions from this handy remote.
114 of 142
Joystick Controls
Electric-over-hydraulic joystick controls (optional) are a light touch for precision control.
115 of 142
CP-84 Chrome Plated Waterway
The strongest, most durable waterway in the industry featuring a galvanized inner coating prevents corrosion of the 84,000 psi pipe. The exterior waterway is chrome plated to provide a smooth telescopic movement throughout the entire extension and retraction of the aerial ladder.
116 of 142
Ergonomic Hose Load (EHL)
Our patented, heavy-duty hydraulic hose loader option improves firefighter safety by placing a maximum of 1,000 feet of 5″ LDH within a firefighter’s reach, eliminating climbs on a wet or slippery apparatus to reload hose.
117 of 142
FP-4 Stabilizing System
Our unique stabilizing system places the front stabilizers just behind the cab of the apparatus. This forward placement provides superior fore/aft leveling capability on steep terrain, plus easy access to the pump panel, while reducing stress on the chassis.
118 of 142
Omni Control System
The OMNI™ Control System is a major breakthrough in firefighter safety, control and incident response. Keep the operator in the safest location with pump
controls located almost anywhere on the apparatus — driver’s side, rear, passenger side, in the cab. Control pumps, valves, generator, scene lights, truck cameras and more.
QL-12 Electrical System
Our reliable plug-and play system reduces the amount of non-plug connectors and makes it easy to add components and make repairs to the electrical system.
120 of 142
Maximized Compartment Space
Full depth and split depth compartments with multi-purpose slide-out trays offer increased storage and easier access to tools.
121 of 142
Low Cross Lay Height
Allows for easy deployment and loading.
122 of 142
Pump and Roll Capable
Based on specific chassis requirements
123 of 142
Color-Coded Pump Panel
Provides the operator with an organized working layout.
124 of 142
IPS Pump Design
The IPS pump design provides a safe and ergonomic work environment with color coded pump panels that offer an organized and identifiable layout to easily perform the functions needed on the job.
125 of 142
Better Hose Storage
Customizable hose load provides more compartment storage, a larger pump, shorter wheelbase and a full complement of hose storage.
126 of 142
Versatile Control Locations
Configurable pump panel with hydraulically controlled valves lets you place it anywhere on your truck.
127 of 142
Nine-step Paint Process
Delays corrosion, rust and other oxidation that shorten vehicle life.
128 of 142
Angled Control Panels
Improves visibility and reduces glare.
129 of 142
Low Hose Bed
Improves access and increases safety through improved stability.
130 of 142
Lower Ladder Rack
Increases vehicle stability and provides easier access.
131 of 142
Smart Access Pump Panels
Makes routine maintenance easier by giving access to the full pump and plumbing configuration, in less than 30 seconds.
132 of 142
Custom Built-in Floor Dry
Keeps your interior compartments free from spilled material and torn bags; can be configured in a number of different areas.
133 of 142
Vibra Torq Body-Mount System
Reduces vibration and stresses on the body for a smoother ride, requires less maintenance, and leads to longer vehicle life.
134 of 142
Tor-Max® & Tri-Max® Body Construction
Delivers extra compartment space, reduces torsional resistance and improves structural stability.
135 of 142
Optimized Engine Tunnel
Increases the hip room for the driver and officer seating location as well as the rear crew floor space behind the engine tunnel, all without increasing the width of the cab. The rear of the tunnel is pushed forward to give an additional 2″ of leg room for the two center forward facing crew, increasing leg room by +3.8%.
136 of 142
Most Spacious Cab
Spartan’s cabs offer the most room available with ergonomic designs, improved visibility, maximized storage, comfort and safety.
137 of 142
High Angle of Approach
This bumper gives you a high angle-of-approach for mobility options above and beyond the norm.
138 of 142
Safer Entry and Egress
Contains the industry’s largest cab steps, lowest step height and tallest, widest cab doors, allowing for safe and efficient entry/egress.
139 of 142
Enhanced Maneuverability
The tightest turn radius and the most maneuverable chassis on the market. The turning radius cramp angles range up to 53° and offer up to a 19-degree approach angle, exceeding NPFA 1901 standards.
140 of 142
Leading Advanced Protection System (APS)
Protects like no other with the #1 safety system in the industry. Includes: four new airbag positions never before offered by any OEM. Side curtain airbags that provide impact and anti-ejection protection, advanced seat belt systems that dramatically reduce restraint system injury.
141 of 142
Aerial Smart Storage
Optional storage around the wheel wells increases the amount of usable compartment space. Smart Storage compartments were designed to free up body compartment space and bring equipment to a more usable height.
142 of 142
