100′ REAR MOUNT LADDER

LOW TRAVEL HEIGHT. MAXIMUM REACH.

For many departments, the dimension that drives aerial apparatus selection is the overall height. This 100′ Rear Mount Ladder design is based on our 105′ aerial structure; however, we have shaved off 5″ of overall height thanks to lower aerial side rails. So, you can fit it into your fire station and under all the bridges, overpasses and aqueducts that stand in the way of a quick response.

The 500-lb. tip load rating while flowing 1,250 GPM at zero degrees gives you all the firefighting power you need. Available with or without a pump and tank, you have the configuration flexibility for your next rear mount ladder while keeping your maximum reach and performance.

Performance Stats

  • Angle of elevation: -6° to 72°
  • Vertical reach: 100’
  • Horizontal reach: 97’
  • Stabilizer spread: 18’
  • Tip load: 500 lbs. unrestricted
  • Available in quint or traditional truck style
  • 4-section ladder design
  • 2 front down and 2 rear H-style outriggers
  • 1250 GPM waterway flow

Features And Benefits

FP-4 Stabilizing System

Our unique stabilizing system places the front stabilizers just behind the cab of the apparatus. This forward placement provides superior fore/aft leveling capability on steep terrain, plus easy access to the pump panel, while reducing stress on the chassis.

Electronic Positional Waterway

Never climb another ladder just to reposition the master stream. Our patented electric positional waterway lets the operator position the waterway to either Rescue or Water Tower mode with a simple one-step procedure from the turntable.

CP-84 Chrome-Plated Waterway

The strongest, most durable waterway in the industry, featuring a galvanized inner coating that prevents corrosion of the 84,000-psi pipe. The exterior waterway is chrome plated to provide a smooth telescopic movement throughout the entire extension and retraction of the aerial ladder.

QL-12 Electrical System

Our reliable plug-and-play system reduces the amount of non-plug connectors and makes it easy to add components and make repairs to the electrical system.

Removable Egress

Bolt-on removable egress for easy replacement. Available in two lengths.

AL-11 Aerial Logic

A totally integrated system that provides instant feedback on a ladder’s extension, location, retraction, angle, load and breathing air system status, as well as J1939 engine information.

Joystick Controls

Electric-over-hydraulic joystick controls (optional) are a light touch for precision control.

Ergonomic Hose Load (EHL)

Our patented, heavy-duty hydraulic hose loader option improves firefighter safety by placing a maximum of 1,000′ of 5″ LDH within a firefighter’s reach, eliminating climbs on wet or slippery apparatus to reload a hose.

LED Rung Lights

Spartan offers blue rung lighting for superior visibility in the aerial climbing area.

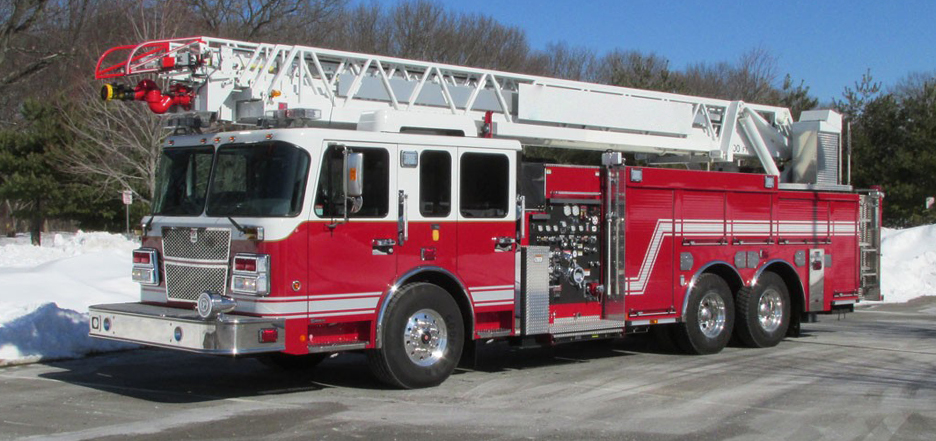

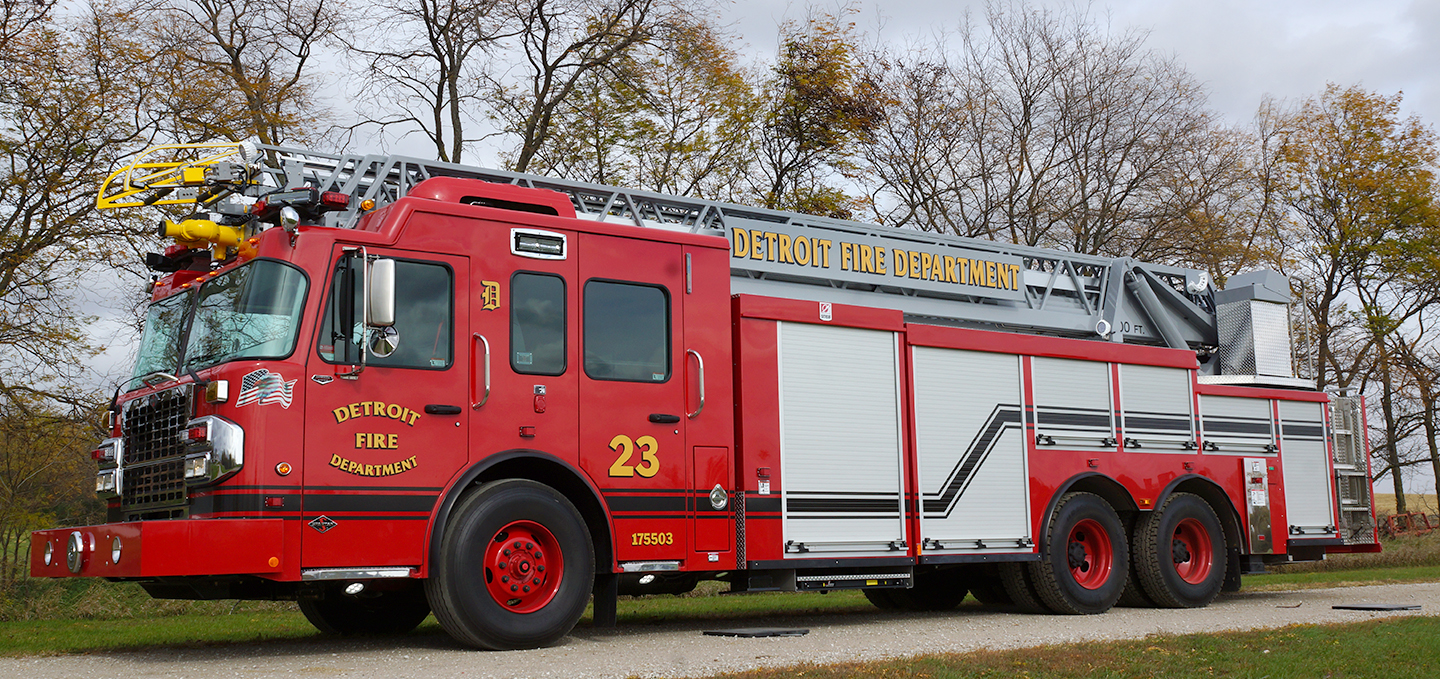

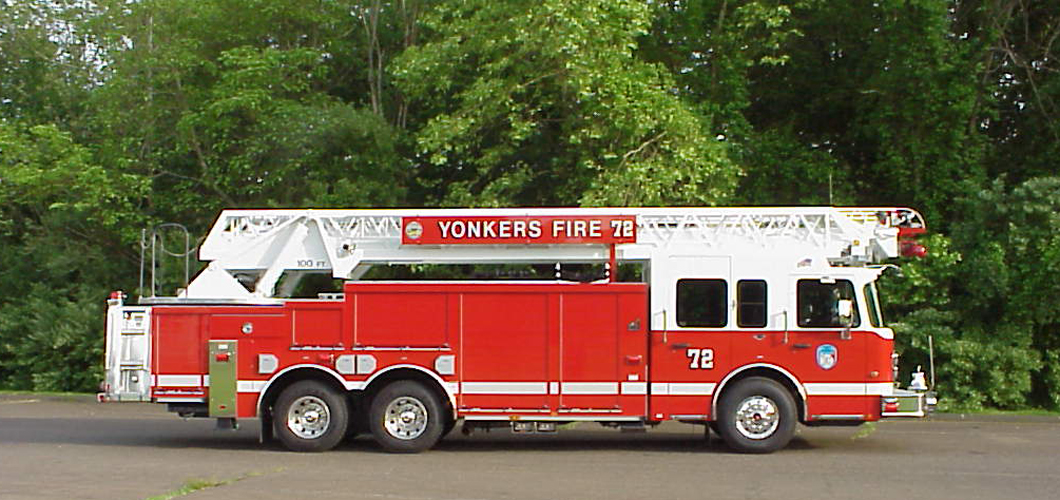

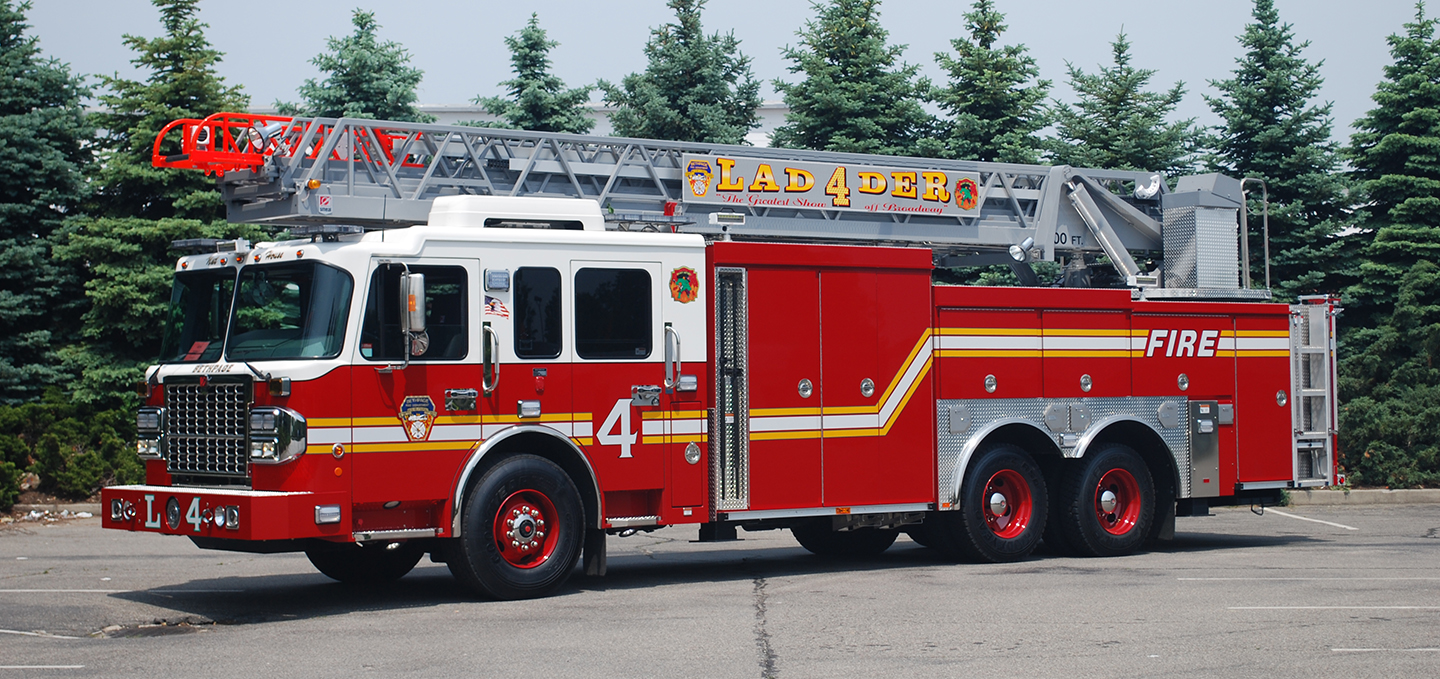

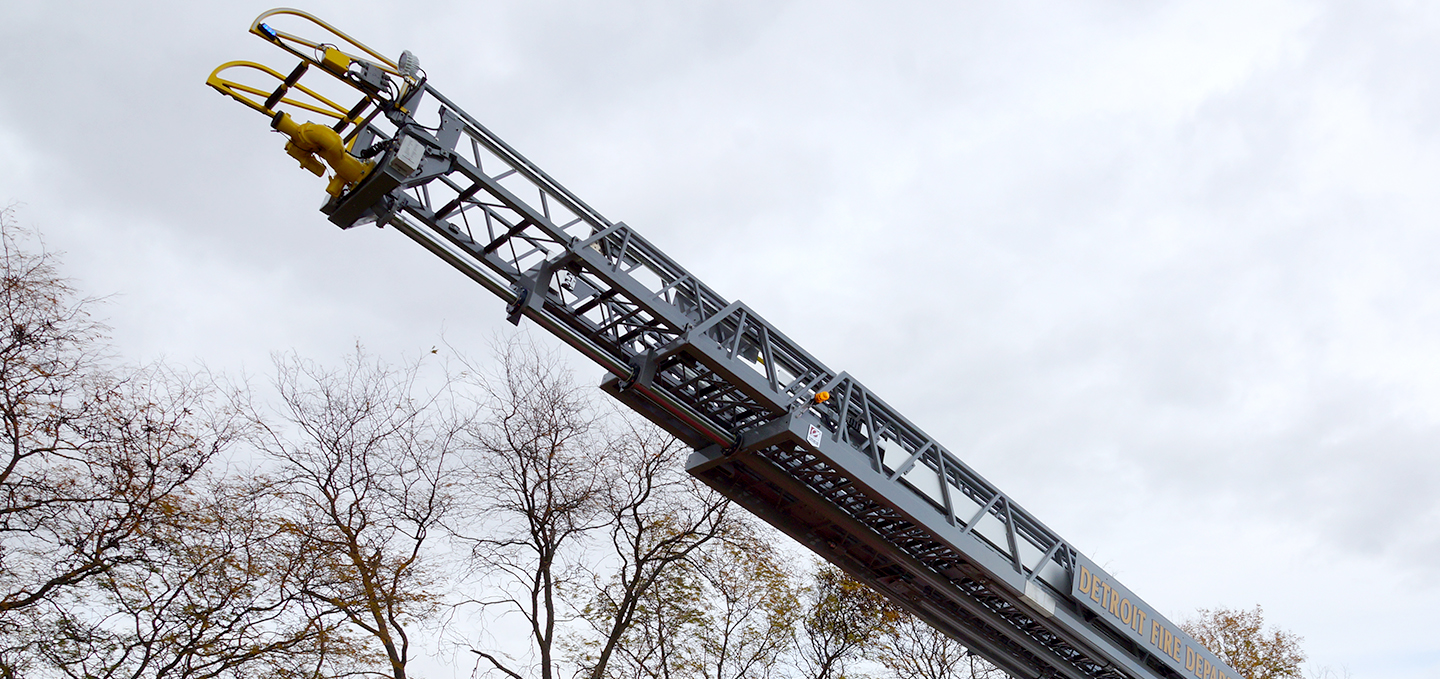

Image Gallery
