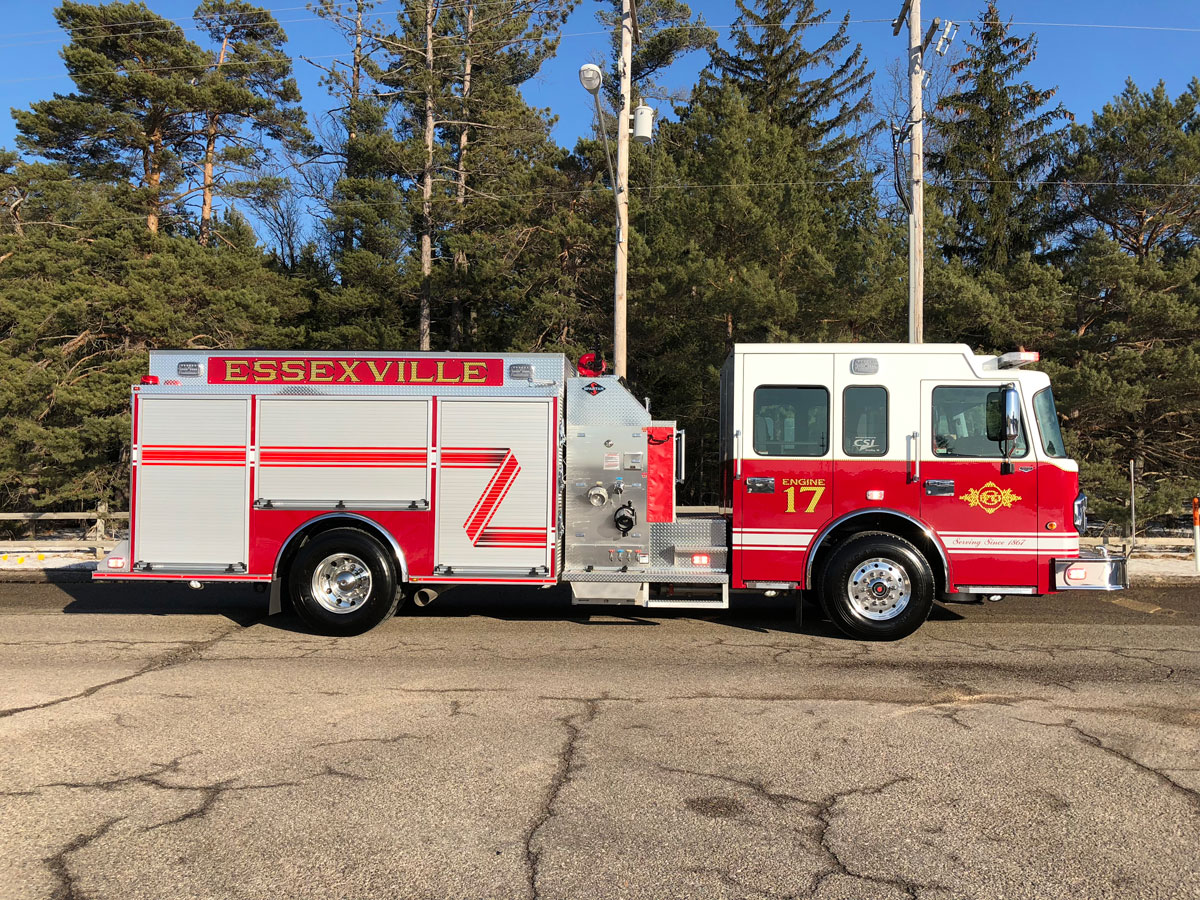

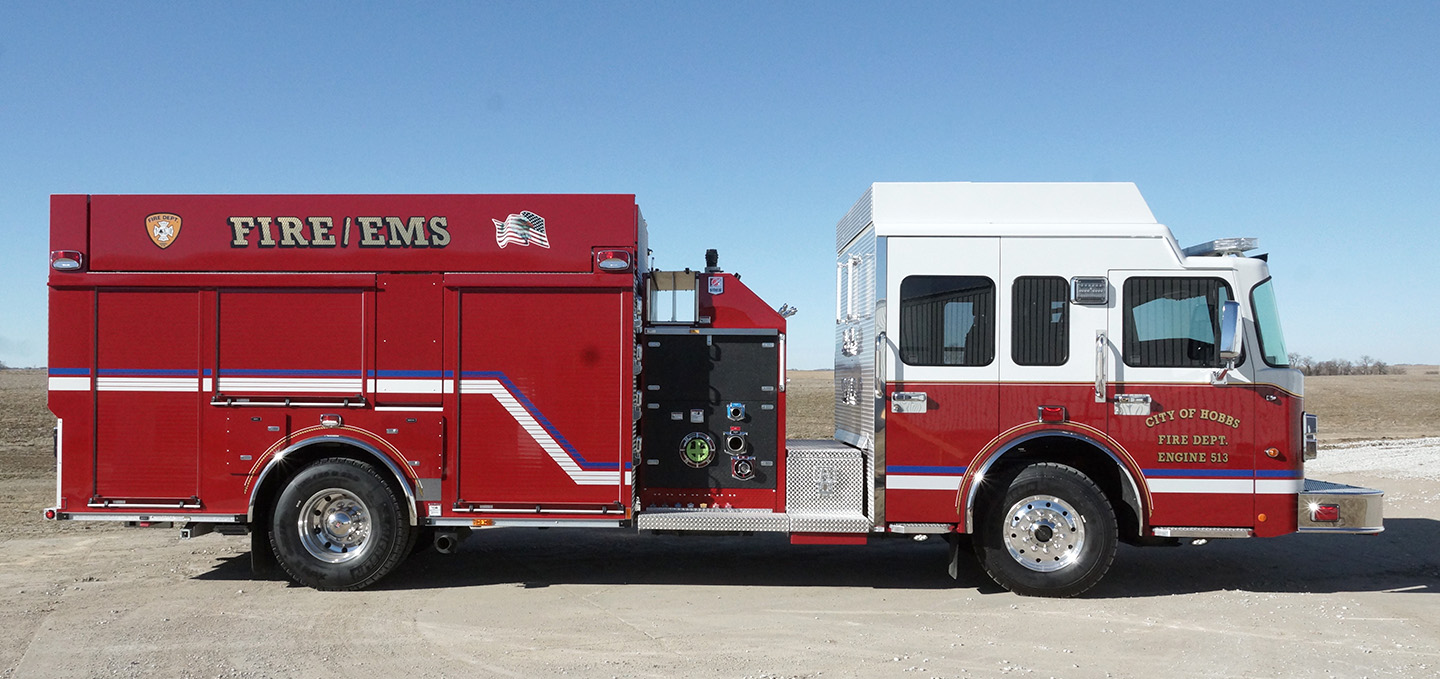

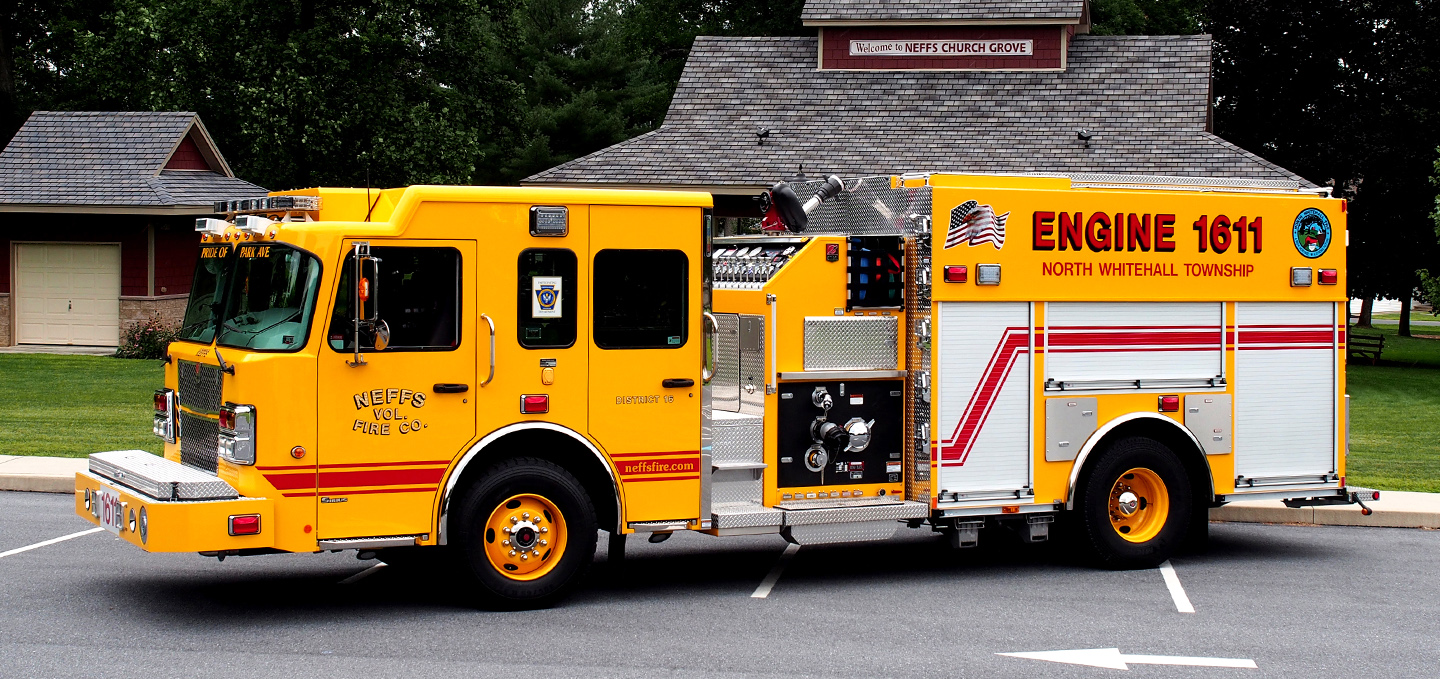

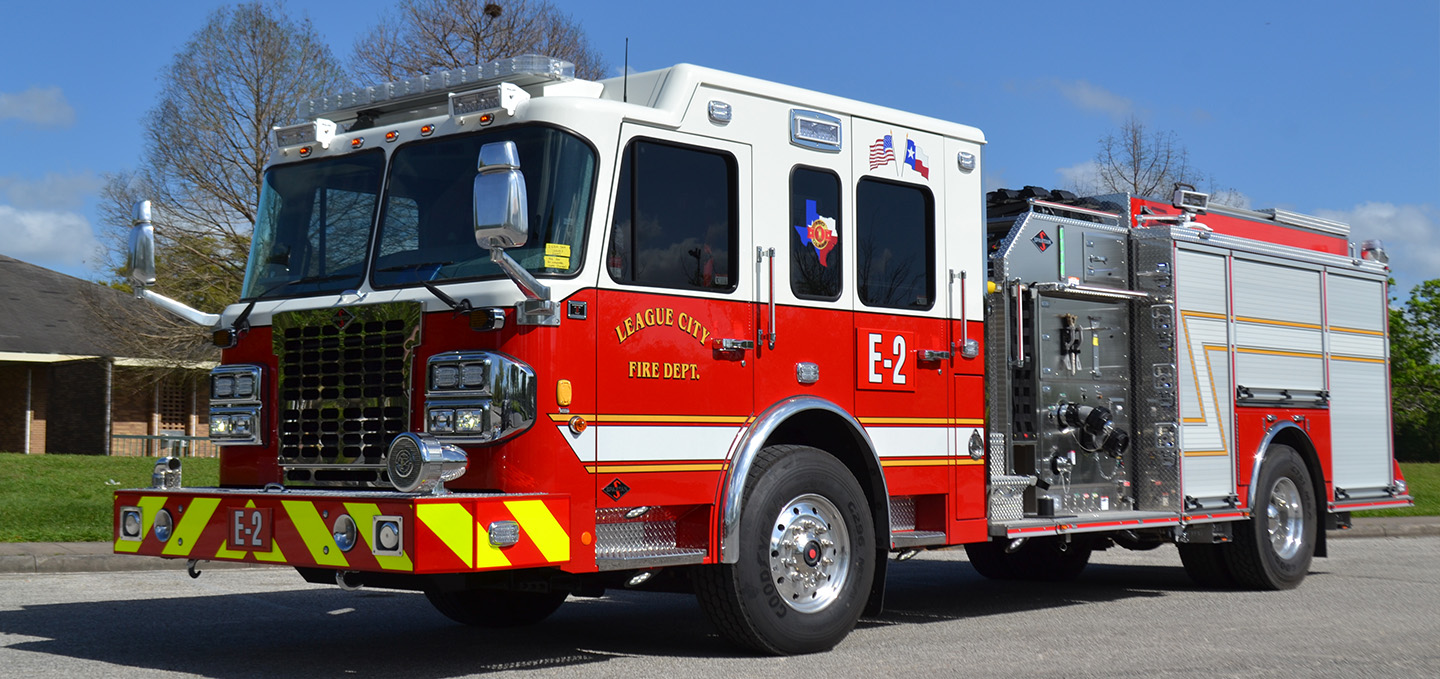

Top Mount Custom Pumpers

CUSTOM-BUILT TO A HIGHER STANDARD.

Spartan’s Top Mount Pumpers put you in control. With a full 360-degree view of the scene, the pump operator has full visibility of the surroundings and can easily access controls without worrying about charged lines getting in the way.

Each configuration features our exclusive body structure and mounting system, offering a durable framework that delivers more compartment space, a lower center of gravity, ergonomic controls and increased serviceability.

Performance Stats

  • Up to 2250 GPM
  • Also available on commercial chassis
  • Metro Star chassis 380-500 HP
  • Gladiator chassis 400-600 HP
  • Stainless steel or aluminum body construction
  • 500 to 1500-gallon tank capacity as standard with larger options available
  • Waterous, Darley, or Hale pump options
  • Spartan’s 1-touch CAFS and other foam systems available
  • Vibra Torq body mount system with 20-year body warranty
  • Compartment depths (12.5″ or 25.5″ upper/25.5″ lower)
  • Space-saving frame to provide greater storage capacity

Features And Benefits

Tor-Max and Tri-Max Body Construction

Delivers extra compartment space, reduces torsional resistance and improves structural stability.

Vibra Torq Body-Mount System

Reduces vibration and stress on the body for a smoother ride, requires less maintenance and leads to longer vehicle life.

Custom Top Mount Controls

Achieve maximum visibility with a top mount configuration and controls where you need them to get the job done.

Pump Module Storage

Maximize every inch of pump module space with speedlays, storage under the steps and custom tool mounting.

Smart Storage

Optional storage around the wheel wells increases the amount of usable compartment space. Smart Storage compartments were designed to free up body compartment space and bring equipment to a more usable height.

Low Hose Bed

Improves access and increases safety through improved stability.

Smart Step Compartment Access

Incorporates a slide-out step at the pump panel, rear or side of body to create a safer work environment.

Spartan One-Touch CAFS

Allows for easy control and operation without manual processes or calculations. Once the pump is engaged and water is flowing, state-of-the-art electronics monitor components in a ready state. The system injects foam into the water and air into the appropriate discharge, sensing foam/water flow and eliminating slug flow.

SG-09 Auxiliary Power Unit, EMISSION-Reduction Technology

Our exclusive SG-09 Green Auxiliary Power Unit (APU) is designed to handle the rigors of the fire service and reduces the operation of the chassis engine while providing all electrical and HVAC capabilities.

Independent Front Suspension

Spartan’s 20k and 24k independent front suspensions provide superior cramp angles with full air suspension, available with a range of tire sizes designed for easy service and maintenance.

Forward Cab Roof Design

All raised-roof applications include forward roof protection that extends over the driver and officer seating, offering more headroom and better line of site.

Most Spacious Cab

Spartan’s cabs offer the most room available with ergonomic designs, improved visibility, maximized storage, comfort and safety.

High Angle of Approach

This bumper gives you a high angle of approach for mobility options above and beyond the norm.

Enhanced Maneuverability

The tightest turn radius and the most maneuverable chassis on the market. The turning radius cramp angles range up to 53 degrees and offer up to a 19-degree approach angle, exceeding the NFPA 1901 standards.
