100′ TRACTOR-DRAWN AERIAL

MAXIMIZE YOUR REACH.

While every TDA’s fifth-wheel design provides a level of maneuverability and position ability not found in other aerials, Ladder Tower has refined its TDA design over decades with customer feedback.

Today, Ladder Tower’s 100′ TDAs are designed for departments that call for a compact, highly maneuverable design, lots of equipment and ladder storage, a narrow stabilizer spread and excellent visibility. With lengths as short as 55’6″ and wheelbases starting at 143″, the TDA provides advantages you can truly appreciate.

Performance Stats

  • Angle of Elevation: -2° to 75°
  • Vertical Reach: 100’
  • Horizontal Reach: 94’ 5″
  • Stabilizer Spread: 14’
  • Tip Load: 250 and 500 lbs.
  • Short wheelbase trailer for tight urban streets

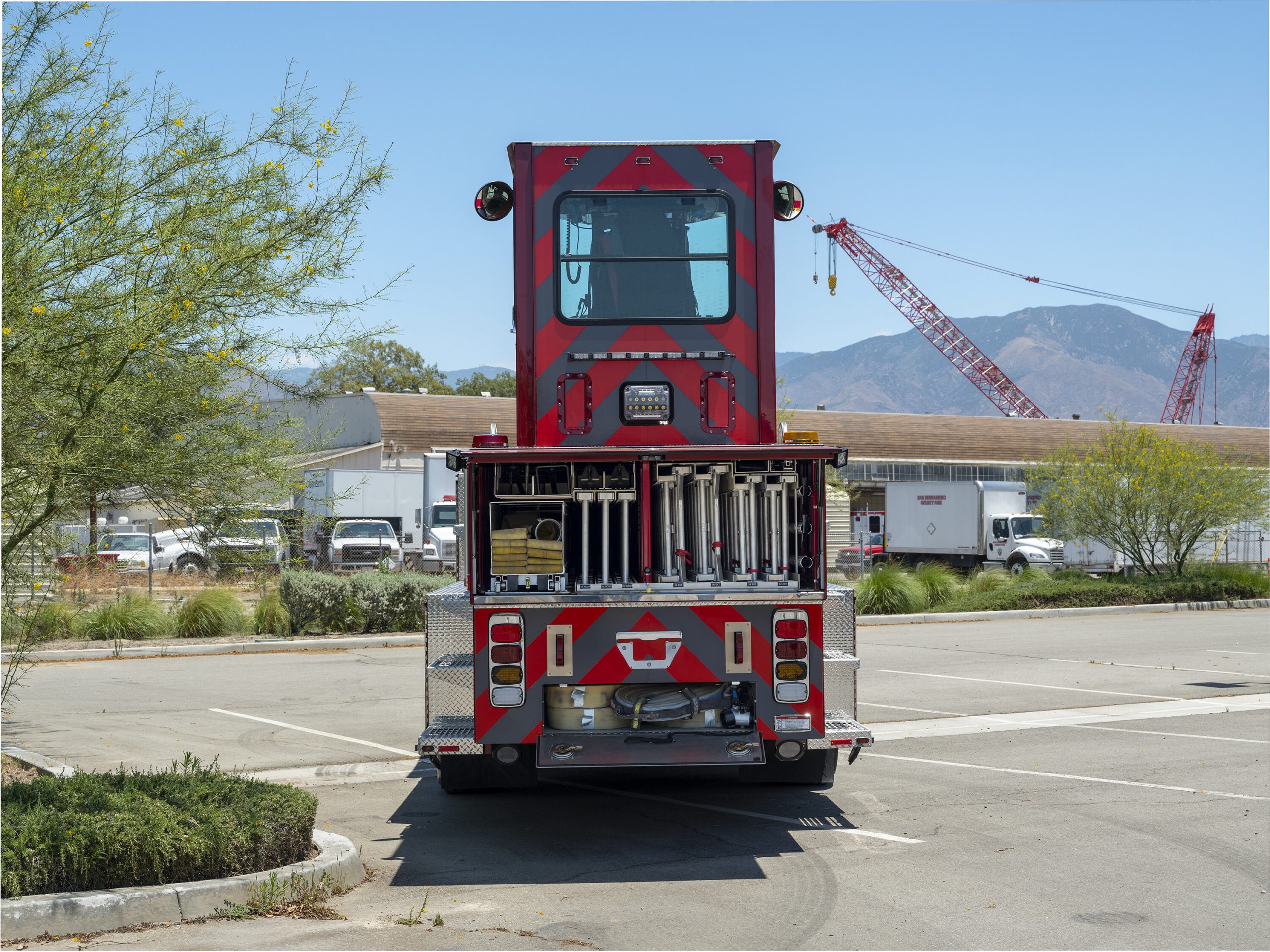

  • Expansive ground ladder storage
  • Narrow stabilizer spread
  • 2 H-style outriggers allow for quick setup and a faster response
  • 11’3″ overall travel height
  • Generous compartment space provides ample storage

Features And Benefits

TDA Clean Climb

A wide, unobstructed walkway allows firefighters to climb with confidence, with cables routed between handrails and out of the way to make all walking areas clear of cables and harnesses.

TDA Maneuverability

Highly maneuverable with increased on-scene access to easily navigate narrow streets and congested urban environments.

Tiller Cab Visibility

Our tiller cab’s unique design provides superior visibility to the operator.

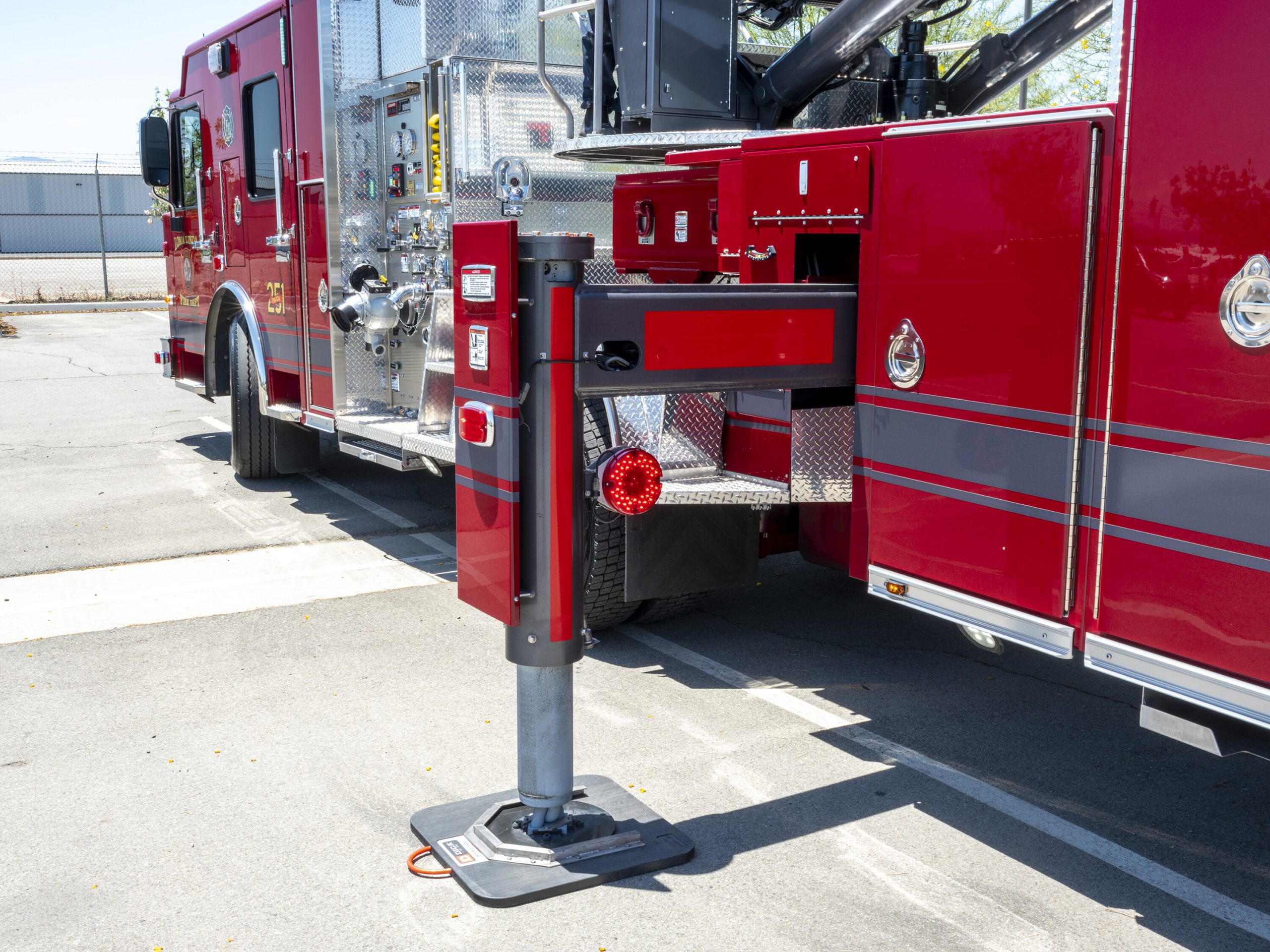

Versatile Outrigger System

Our H-style outrigger system provides strength and stability under all road and terrain conditions. LT’s effective “put and down” design automatically locks into supporting position with no locking pins to place or remove. The footplate swivels in all directions, providing superior holding on uneven terrain.

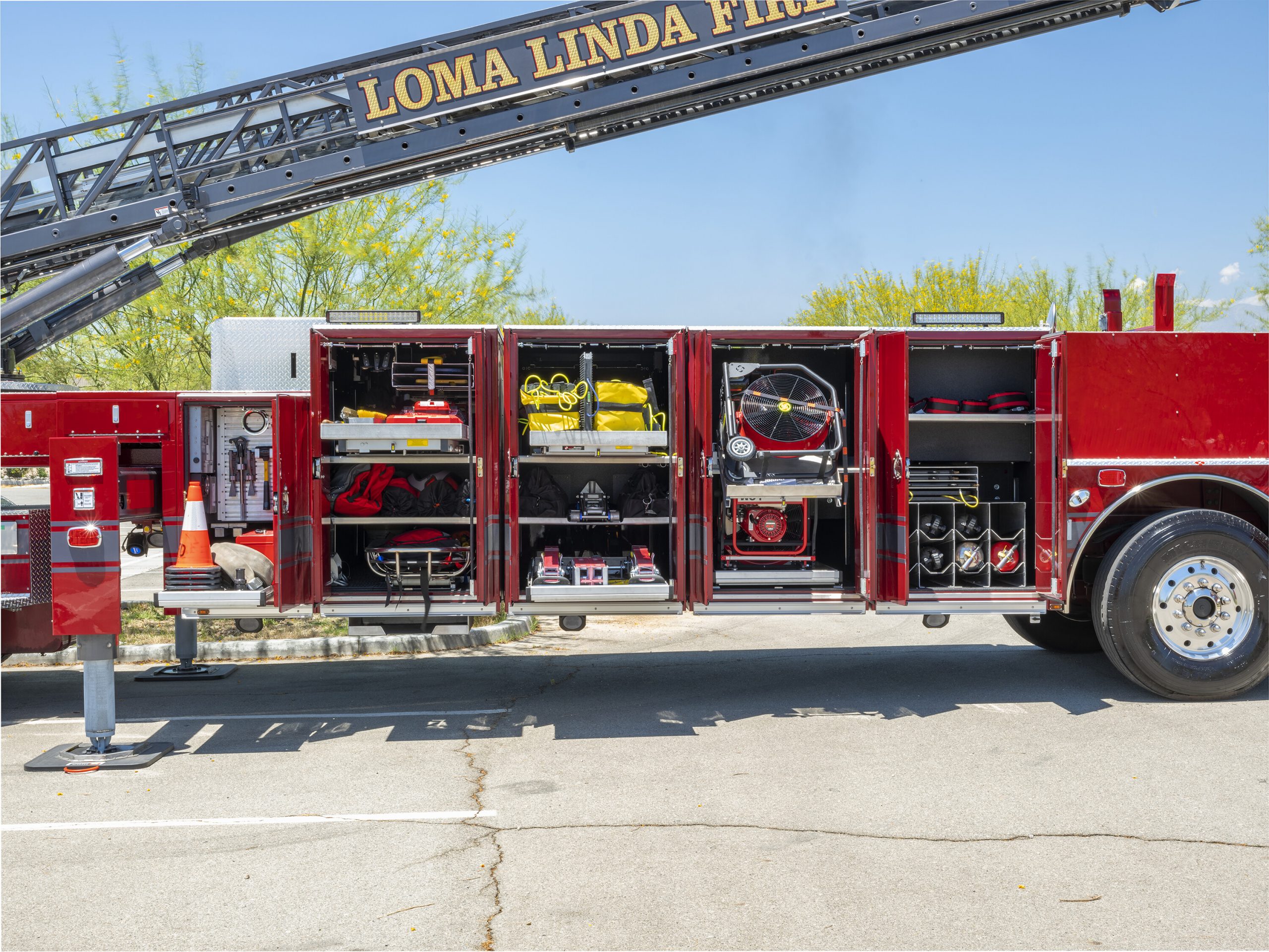

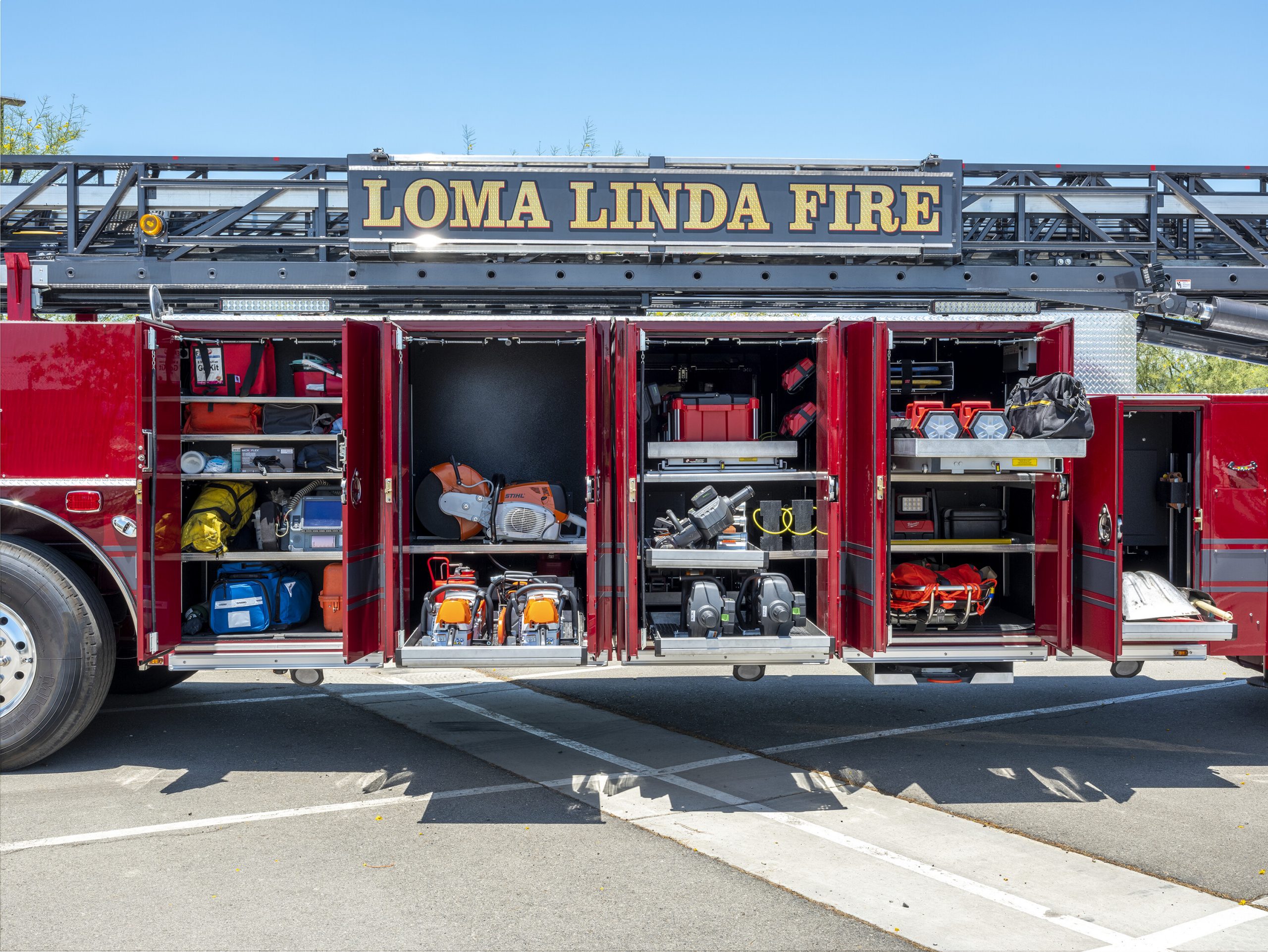

Tractor-Drawn Aerial Storage

Generous compartment space provides ample storage for ladders and equipment.

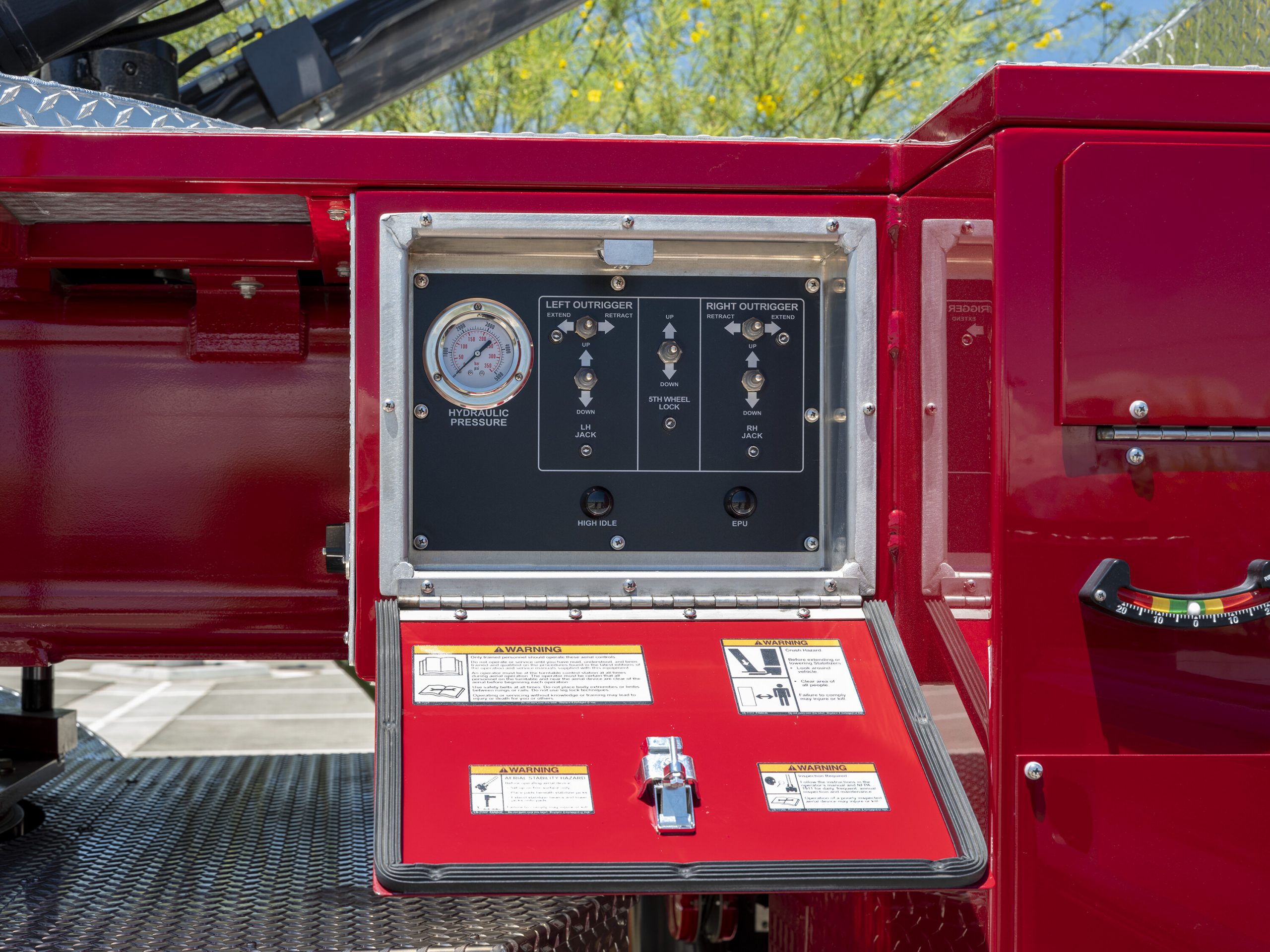

Simple Controls

Classic or advanced aerial controls offer traditional direct hydraulic controls or electro/hydraulic controls with additional options and features.
