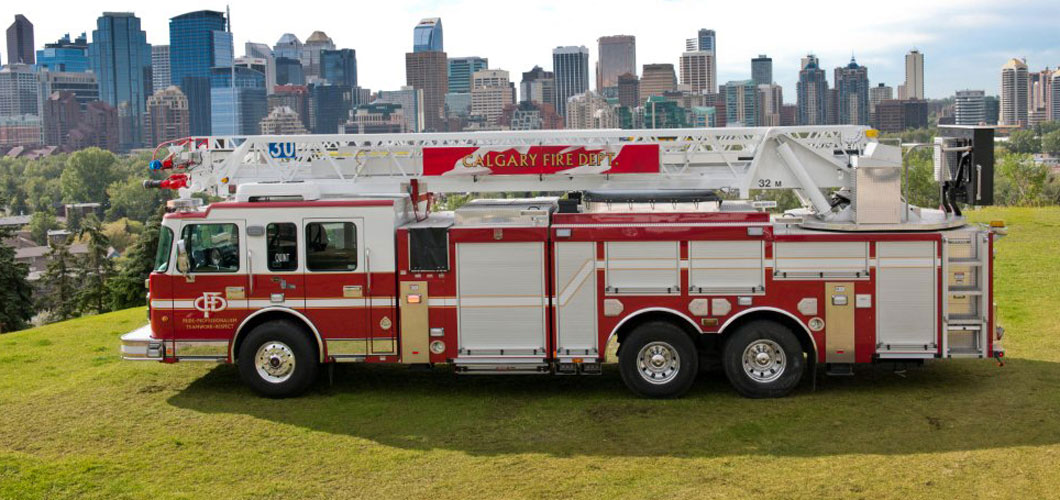

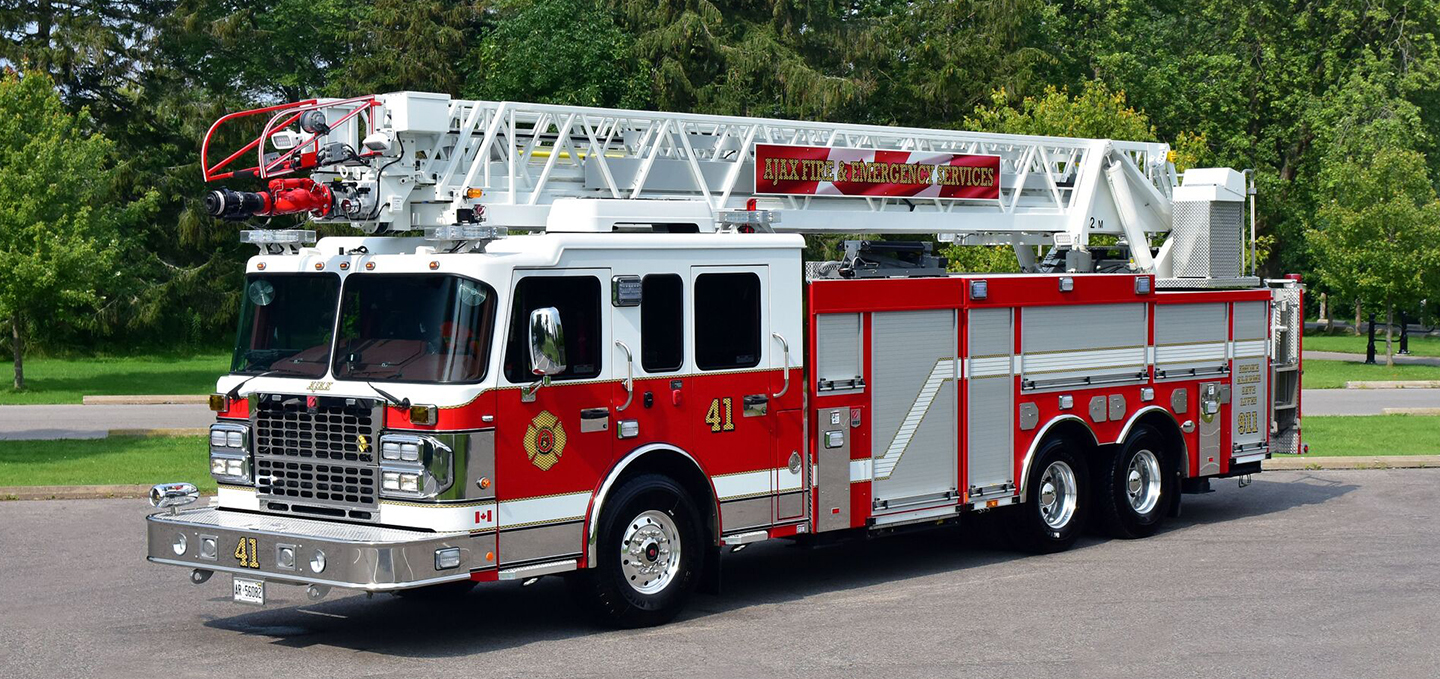

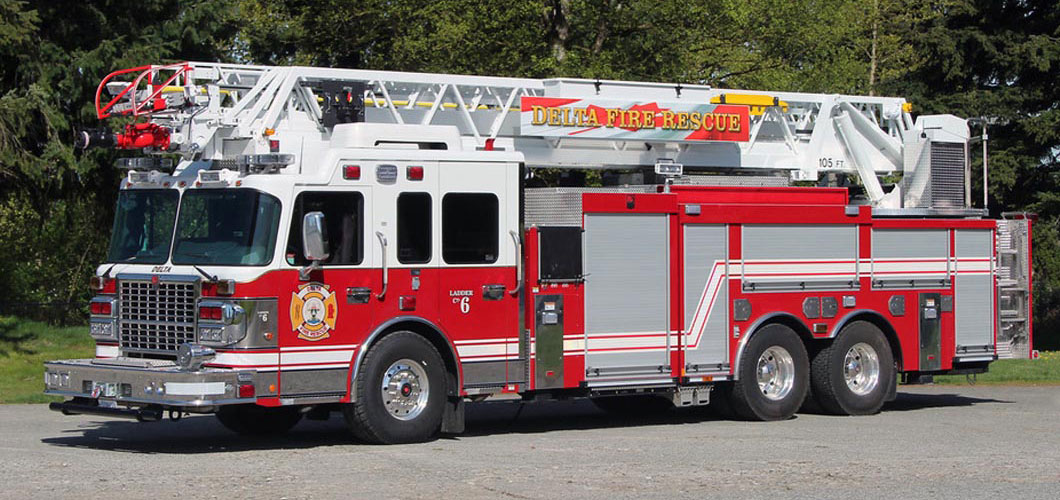

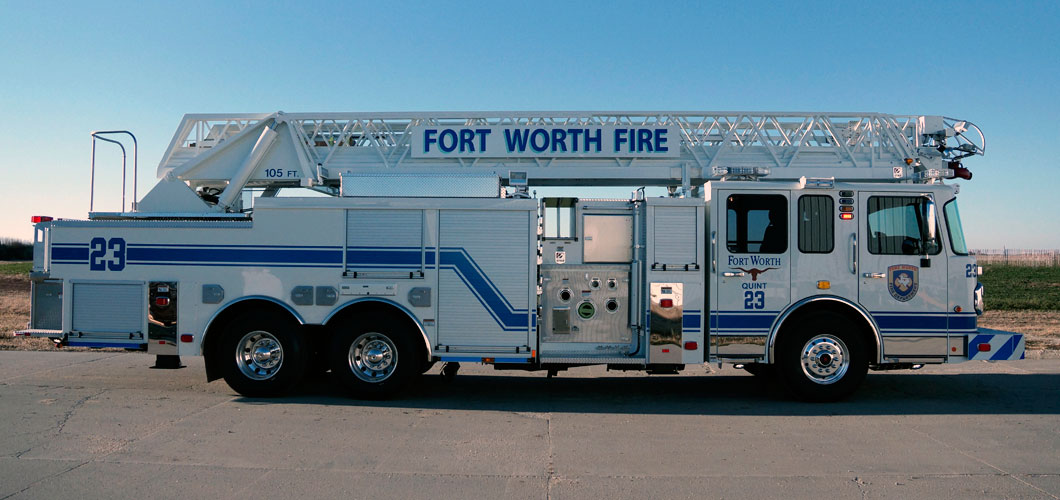

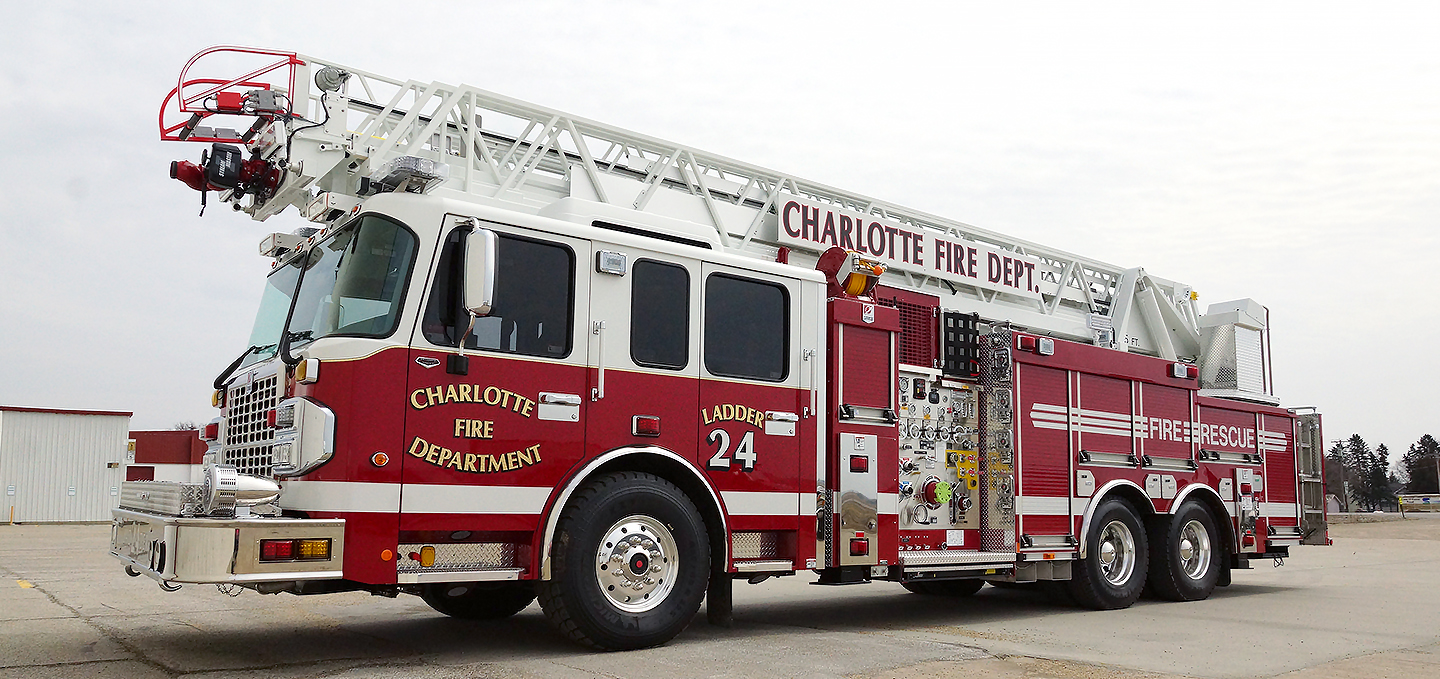

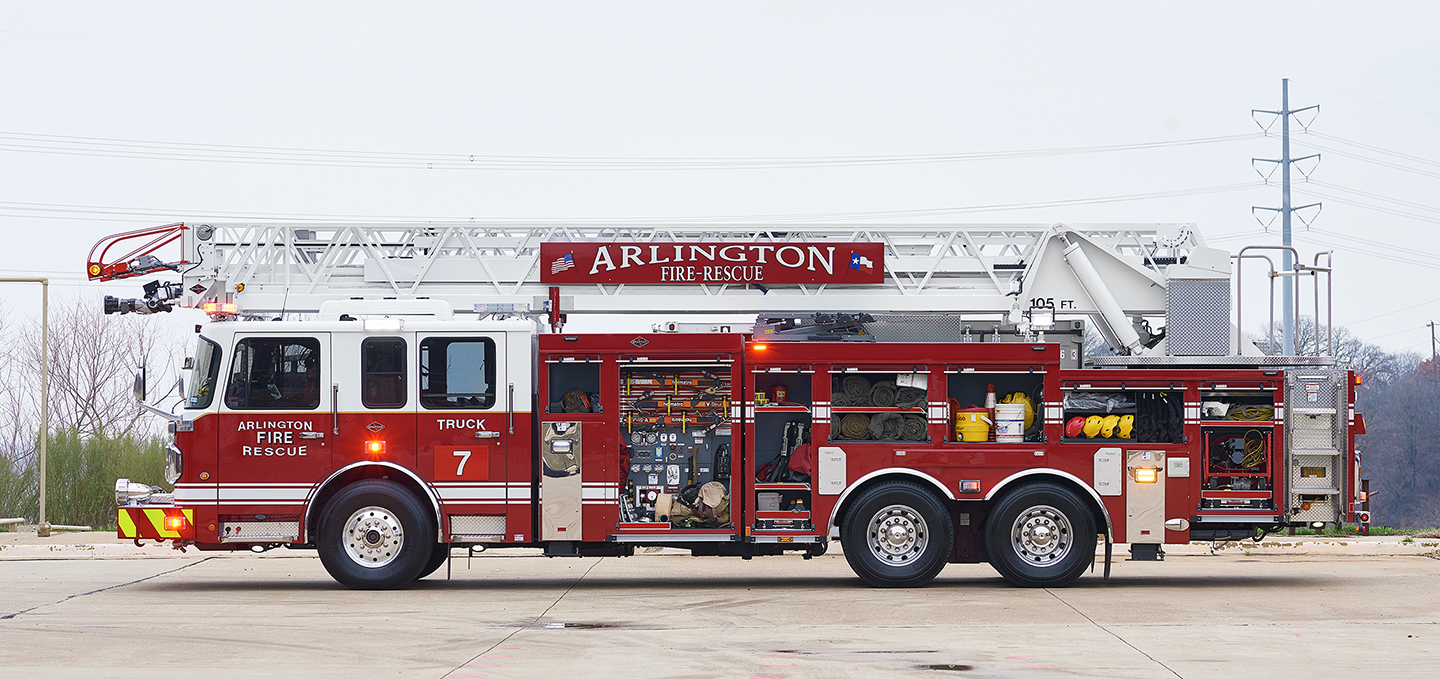

107′ REAR MOUNT LADDER

EXCELLENT HORIZONTAL AND VERTICAL REACH.

Count on our 107′ Heavy-Duty Rear Mount Ladders for their robust design, 750-lb. tip load (wet) at 0 degrees and excellent vertical reach. Available in a quint or traditional truck style, the 107′ Rear Mount Ladder is configured with a unique outrigger design and placement that allow departments to achieve full operational capability on a 12% grade (downhill and uphill).

The 107′ Rear Mount Ladder is available with multiple options and configurations to serve your department’s needs in any urban or suburban firehouse. When the challenge is great, this 107′ heavy-duty rear mount ladder will never let you down.

Performance Stats

  • Angle of elevation: -8° to 72°
  • Vertical reach: 107’
  • Horizontal reach: 101’ 5″
  • Stabilizer spread: 16’/18’
  • Available in quint or traditional truck style
  • 4-section ladder design
  • 750 lb. tip-load dry/wet unrestricted
  • 4 H-style outriggers
  • 1500 GPM waterway flow
  • Up to 600-gallon tank capacity
  • 11’ 10” standard travel height

Features And Benefits

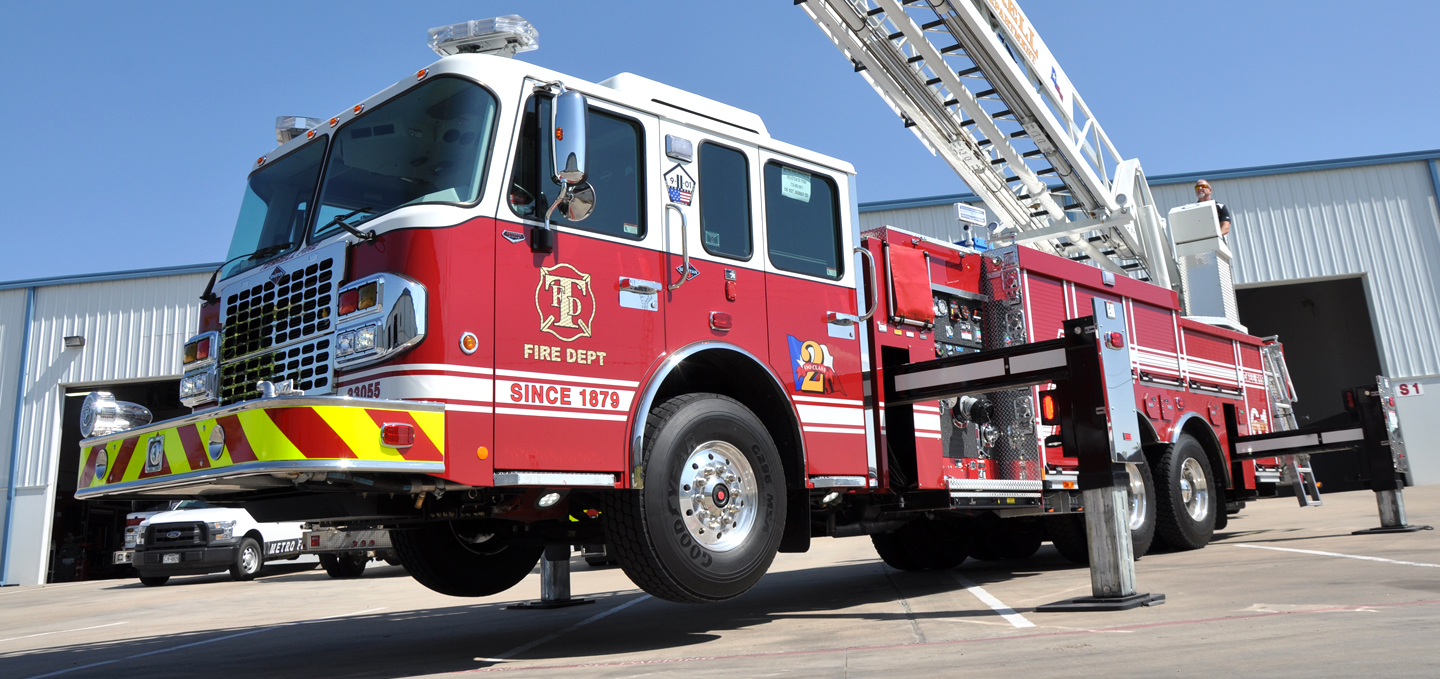

FP-4 Stabilizing System

Our unique stabilizing system places the front stabilizers just behind the cab of the apparatus. This forward placement provides superior fore/aft leveling capability on steep terrain, plus easy access to the pump panel, while reducing stress on the chassis.

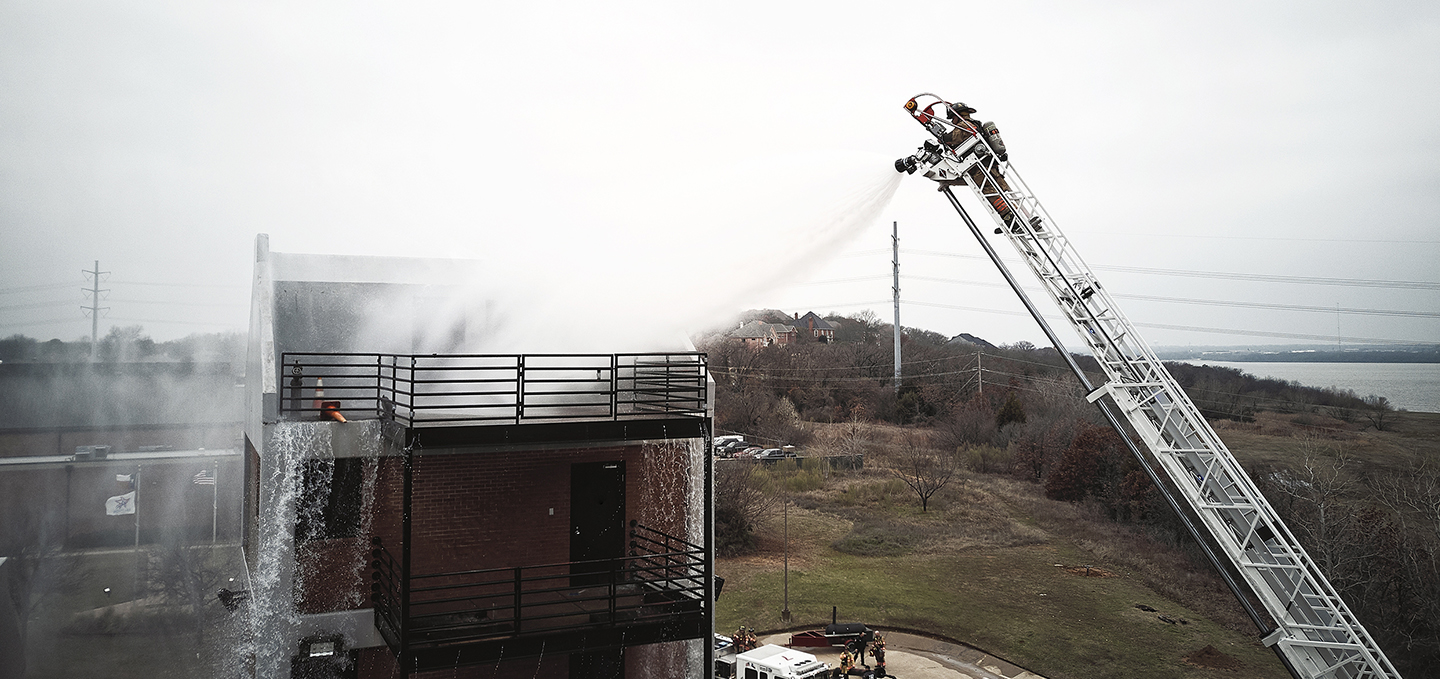

Electronic Positional Waterway

Never climb another ladder just to reposition the master stream. Our patented electric positional waterway lets the operator position the waterway to either Rescue or Water Tower mode with a simple one-step procedure from the turntable.

CP-84 Chrome-Plated Waterway

The strongest, most durable waterway in the industry, featuring a galvanized inner coating that prevents corrosion of the 84,000-psi pipe. The exterior waterway is chrome plated to provide a smooth telescopic movement throughout the entire extension and retraction of the aerial ladder.

QL-12 Electrical System

Our reliable plug-and-play system reduces the amount of non-plug connectors and makes it easy to add components and make repairs to the electrical system.

Removable Egress

Bolt-on removable egress for easy replacement. Available in two lengths.

AL-11 Aerial Logic

A totally integrated system that provides instant feedback on a ladder’s extension, location, retraction, angle, load and breathing air system status, as well as J1939 engine information.

Joystick Controls

Electric-over-hydraulic joystick controls (optional) are a light touch for precision control.

Ergonomic Hose Load (EHL)

Our patented, heavy-duty hydraulic hose loader option improves firefighter safety by placing a maximum of 1,000′ of 5″ LDH within a firefighter’s reach, eliminating climbs on wet or slippery apparatus to reload a hose.
