NXT 110′ AERIAL

THE IDEAL COMBINATION OF AERIAL POWER AND URBAN AGILITY.

The NXT 110 Aerial yields maximum and unrestricted performance with up to 750-pound tip load, at any angle and extension. This performance, combined with a low-profile pump and short overall length, delivers unprecedented maneuverability without sacrificing compartment space or performance.

A more compact, yet powerful NXT pump with up to 2,250 GPM and a 500-gallon tank provides the power needed to manage any situation. The pump is positioned at the rear of the cab under the seat extension, allowing for a full body pump, without taking up space inside the cab. Low pump inlet and discharges provide a safe and ergonomic work environment.

Performance Stats

  • 110′ vertical reach | 99′ horizontal reach
  • 750 lb. tip load with 14′ outrigger spread
  • 500 lb. tip load with 12′ outrigger spread
  • 1,500 gpm aerial water flow capacity
  • 2,250 gpm fire pump
  • Up to 170 ft. of internal ground ladder storage
  • Under 40′ overall travel length
  • 53° cramp angle
  • 223″ wheelbase

Features And Benefits

Safe. Strong. Stable.

Square and rectangular tubing provide a large ladder cross section for superior rigidity, with longer weld joints for increased ladder strength. The tubular welded steel torque box mainframe stiffens the backbone of the apparatus to provide a rigid and durable mounting base for the aerial and body. This helps absorb the overturning loads generated by the aerial and distributes them evenly to the outriggers.

Excellent Horizontal and Vertical Reach

Built with up to 100,000 psi yield strength steel with elevations ranging from 7 degrees below horizontal to as high as 78 degrees above horizontal. Minimal ladder bow gives personnel solid climb at any elevation.

12' and 14' Narrow Outrigger Spread

Our H-style outrigger system provides strength and stability under all road and terrain conditions. LT’s effective “out and down” design automatically locks into supporting position with no locking pins to place or remove. A 12′ outrigger spread with quick and simple deployment delivers industry-leading performance.

Superior Grade Operations

Set up and operate on grades of up to 20% with unrestricted performance. The footplate swivels in all directions, providing superior holding on uneven terrain, and the 24″ X 24″ auxiliary ground plates provide additional load distribution on soft ground.

Low Ground Ladder Storage

Fully enclosed ground ladders are located just 40″ from the ground, providing safe and ergonomic access to up to 270′ of storage.

Safe and Easy Turntable Access

Wide egress steps and walkways provide easy access to and from the ladder.

Maximum Pump Capabilities

The non-proprietary NXT pump offers up to 2,250 GPM along with added room and storage in the cab and body.

Maximized Space Usage

The unique packaging of the NXT 110 offers maximum storage space inside the cab and body compartments.

Greater Control and Stability

The tandem axle design delivers better suspension and braking capabilities, with additional carrying capacities resulting in a safer apparatus with greater control and stability.

Low Travel Height

The ladder sections are designed to provide a low profile and travel height, making it easy to fit into historic firehouses and under bridges.

Independent Front Suspension

Spartan’s 20k and 24k independent front suspensions provide superior cramp angles with full air suspension, available with a range of tire sizes designed for easy service and maintenance.

Pump Operator's Panel

The pump operator’s panel is located inside the L2 compartment.

110' Aerial Water Monitor

When positioned at the tip, the water monitor can be elevated at 30 degrees above horizontal for storefront blitz operation.

Resources

NXT 110′ Aerial Brochure

DOWNLOAD

Spartan Clean Cab Brochure

DOWNLOAD

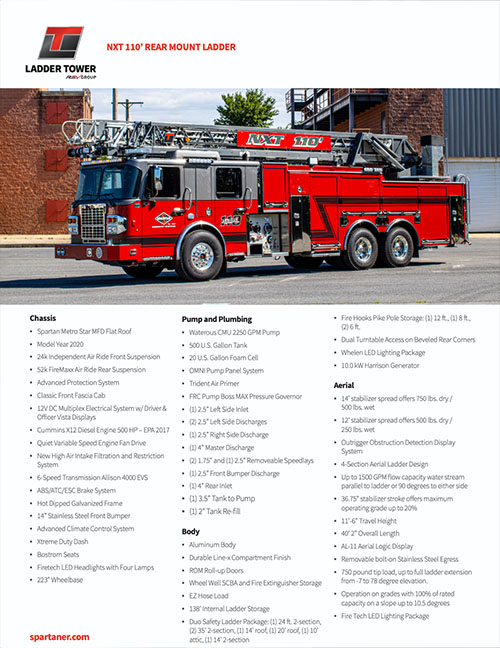

NXT 110′ Aerial Quick Spec
