75′ REAR MOUNT LADDER

MAXIMIZE YOUR REACH.

Compact and maneuverable, the Ladder Tower 75′ Rear Mount Ladder on a single rear axle is designed to deliver the highest level of performance in the toughest, high-run urban and suburban environments.

Built on wheelbases as short as 207″, this rugged aerial offers 75′ of vertical and 66′ of horizontal reach with a 500-lb. tip load rating, while flowing 1,500 GPM with an allowance for 100 lbs. of equipment at the tip. The overall height is 11′ 5″, allowing this aerial to easily navigate low fire station doors, bridges and underpasses. The LT 75′ aerial features a 500-gallon water tank, sideload hose bed capable of 1,000′ of 5″ LDH and low enclosed ladder storage that promotes quick, safe removal and easier handling for up to 115′ of ground ladders.

The 75′ Rear Mount Ladder, available on a single or tandem axle, is designed to be the centerpiece of your aerial attack and rescue operations. Built with 100,000 psi yield strength steel, this aerial workhorse provides up to a 750-lb. tip load rating (wet), the ability to flow 1,500 GPM at 0 degrees elevation straight out to the side and the solid “step feel” that all Spartan aerials are known for.

All configurations are designed with exceptional compartment storage, with a short wheelbase for better maneuverability. The 75′ Rear Mount Ladder on a single axle is available in two configurations that offer a 500 or 750-lb. tip load.

Performance Stats

  • Angle of elevation: -6° to 72°
  • Vertical reach: 75’
  • Horizontal reach: 71.5’
  • Stabilizer spread: 18’
  • Available in quint or traditional truck style
  • 3-section ladder design
  • Available with a 2 or 4 outrigger system
  • Up to 750 lb. tip-load wet/dry while flowing 1500 GPM unrestricted
  • Up to 600-gallon tank capacity (tandem axle)
  • 11’ 4” standard travel height

Features And Benefits

Versatile Outrigger System

Our H-style outrigger system provides strength and stability under all road and terrain conditions. LT’s effective “put and down” design automatically locks into supporting position with no locking pins to place or remove. The footplate swivels in all directions, providing superior holding on uneven terrain.

Ladder Slide Pads

Load transfer pads and front, rear and side slide pads, designed with accessibility in mind for easy inspection and replacement, reduce friction and ensure smooth ladder operation.

Clean Climb

A wide, unobstructed walkway allows firefighters to climb with confidence, with cables routed between handrails and out of the way to make all walking areas clear of cables and harnesses.

75' Aerial Water Monitor

When positioned at the tip, the water monitor can be elevated at 30 degrees above horizontal for storefront blitz operation.

Ladder Tower Clean Top

Designed with an unobstructed egress for easy service, the bolt-on removable egress can be easily replaced. Available in various lengths.

Simple Controls

Classic or advanced aerial controls offer traditional direct hydraulic controls or electro/hydraulic controls with additional options and features.

Waterway Controls

Repositioning the waterway can be done easily with the flip of a mechanical lever.

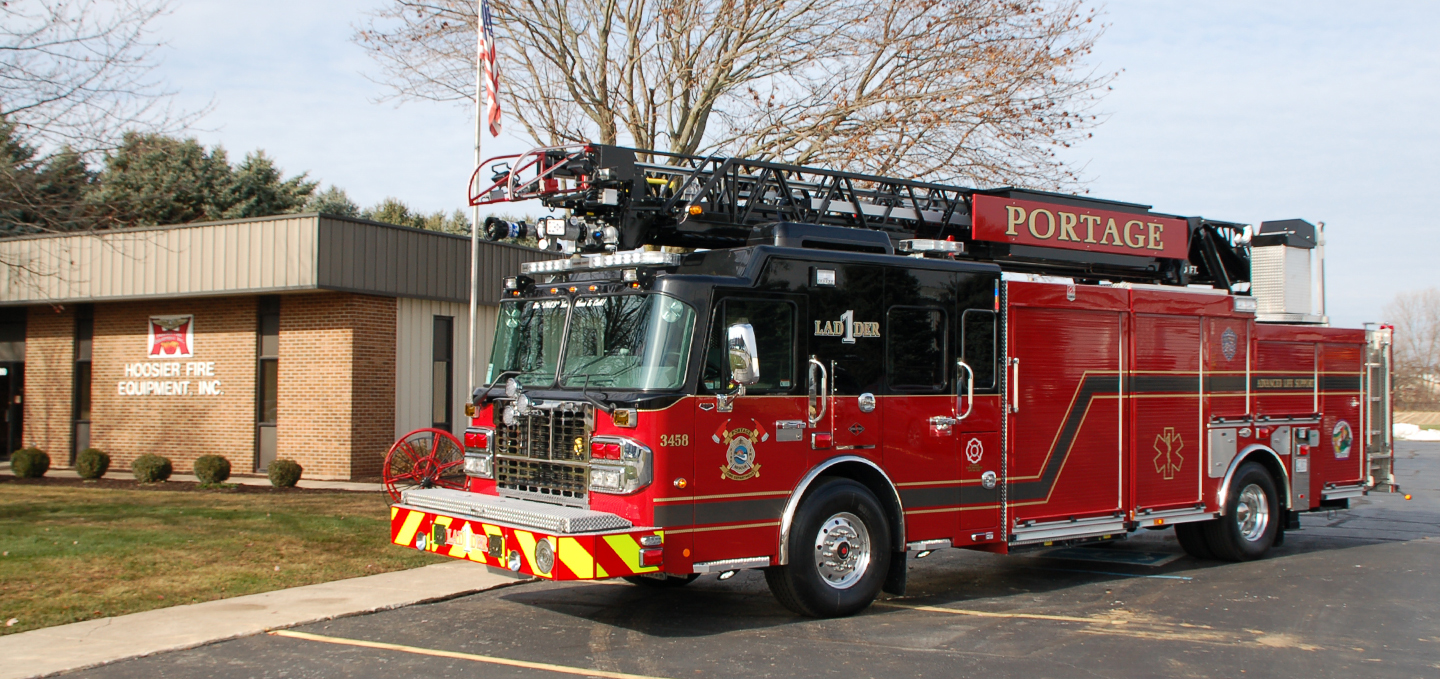

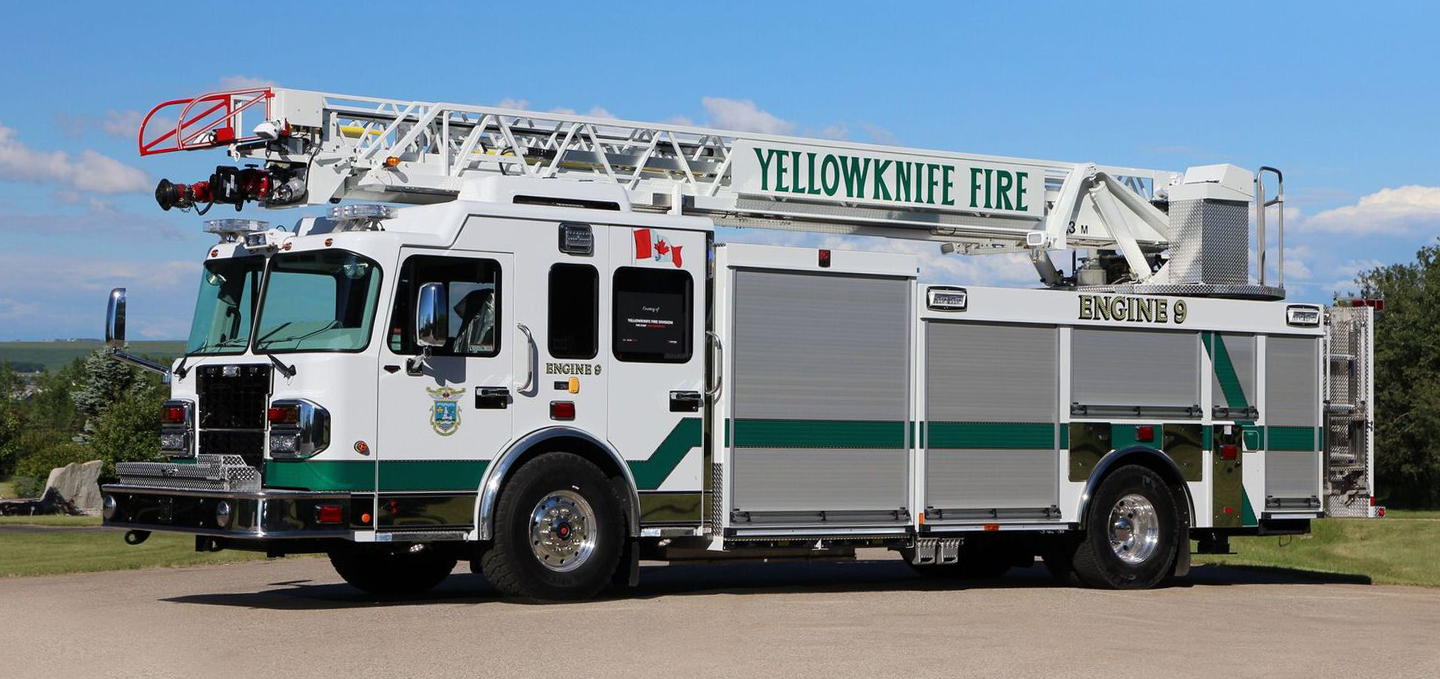

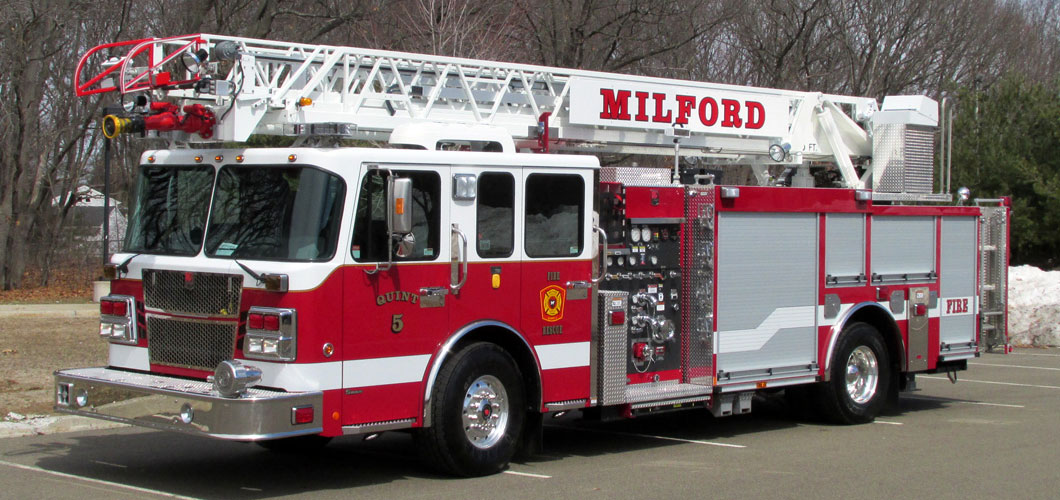

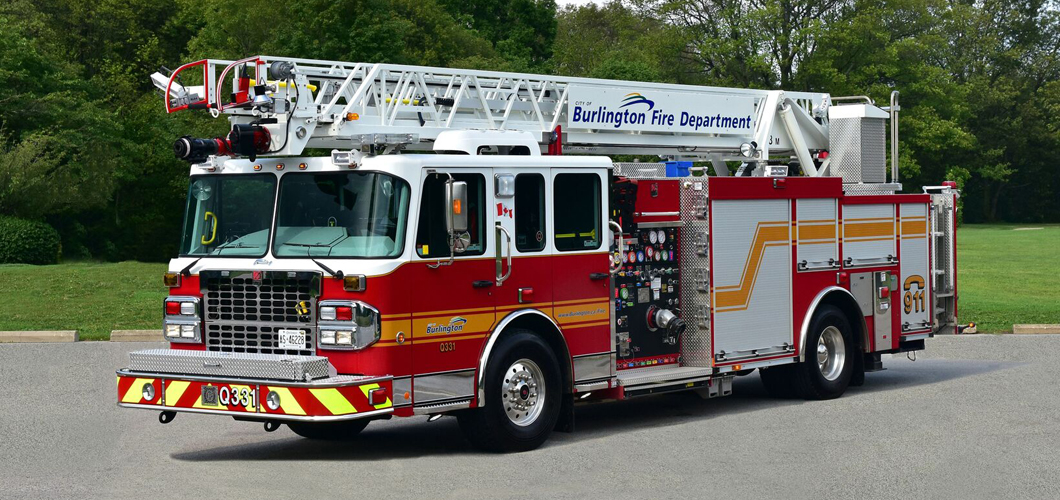

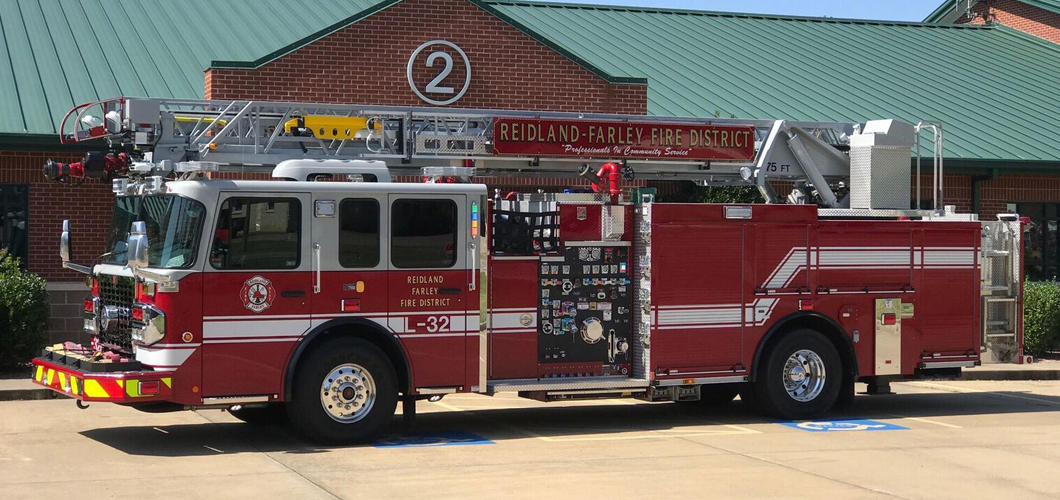

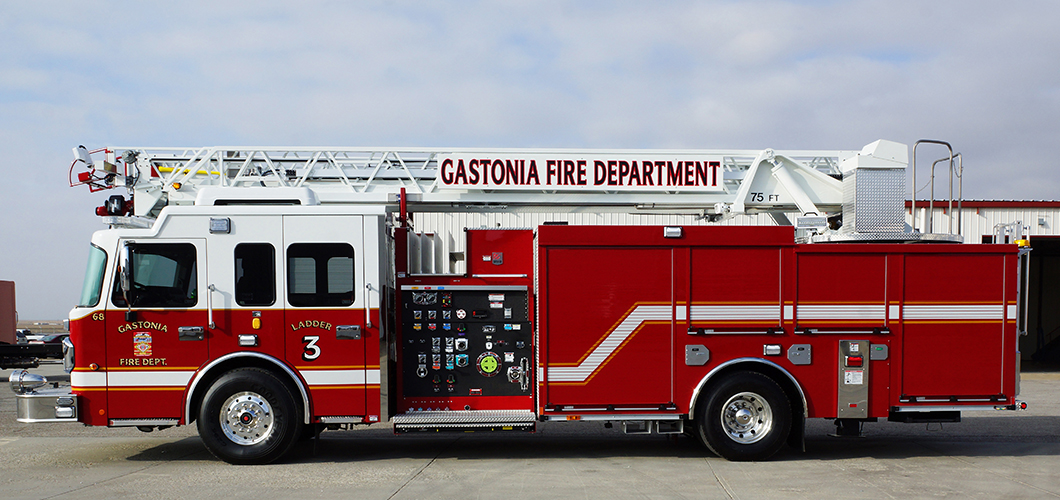

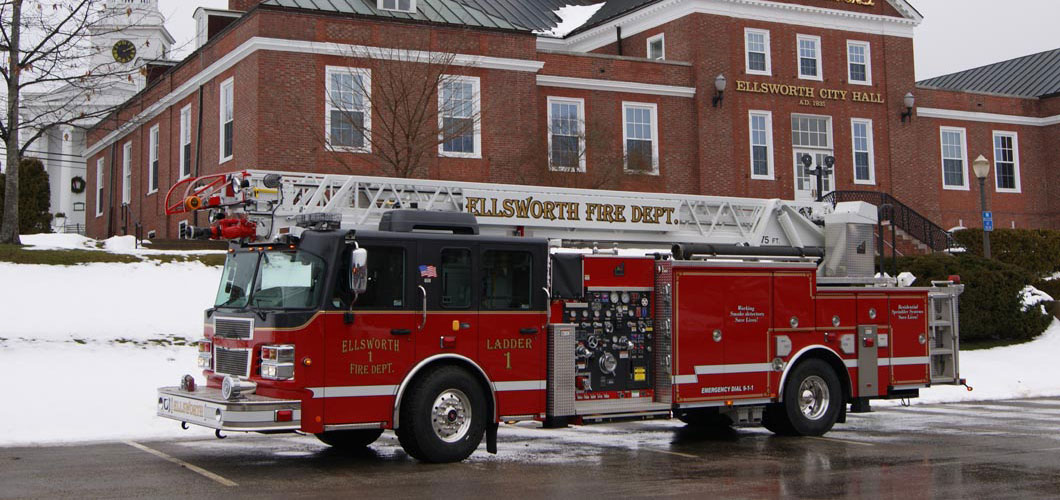

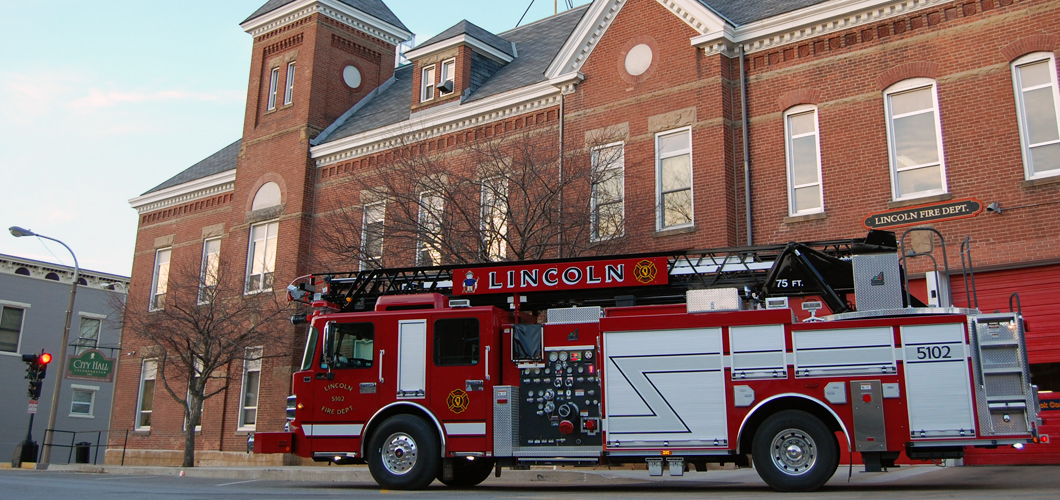

Image Gallery
