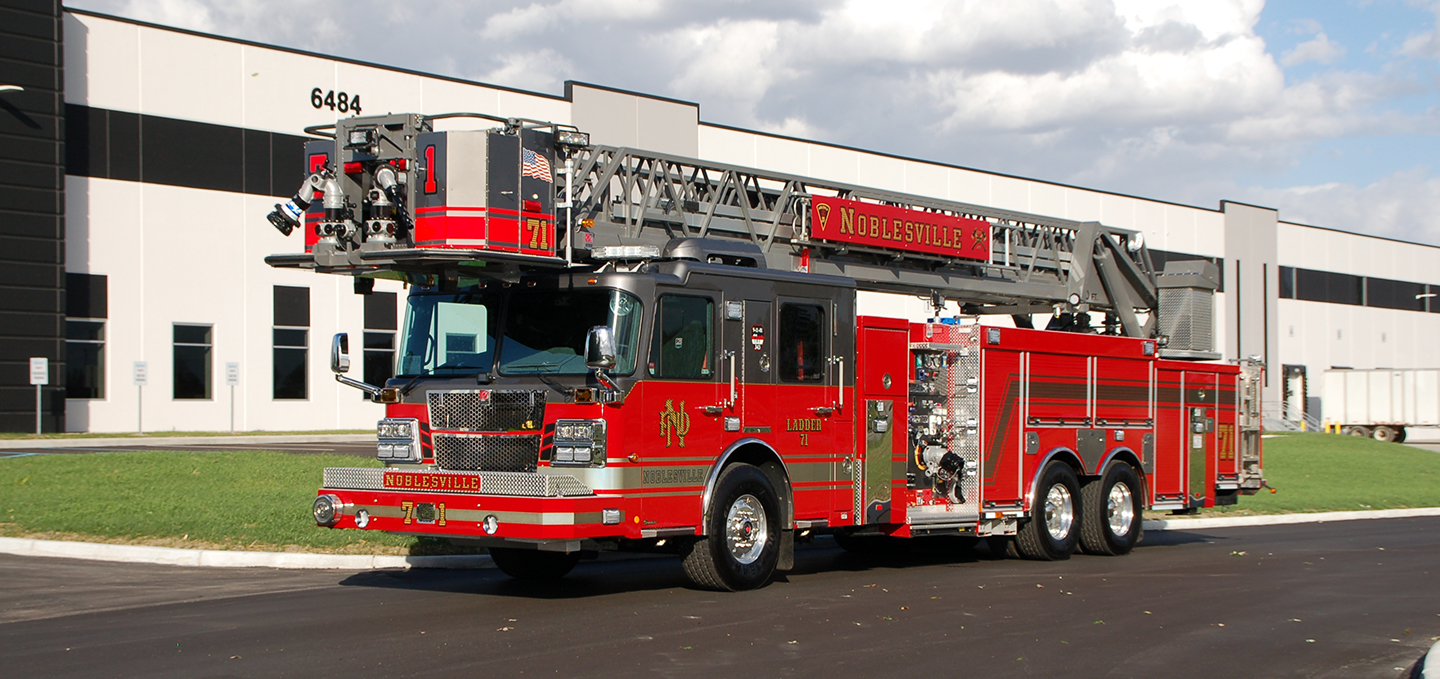

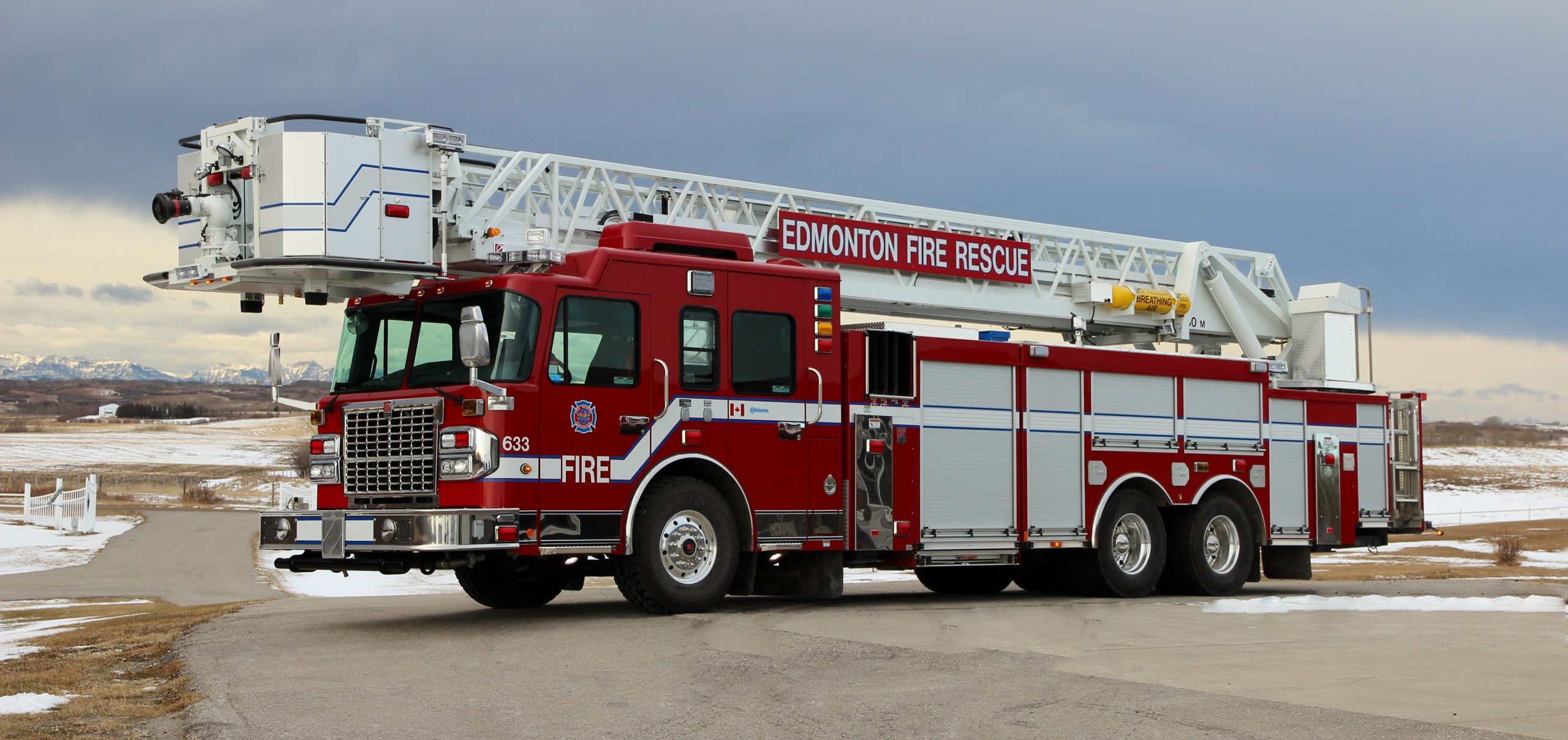

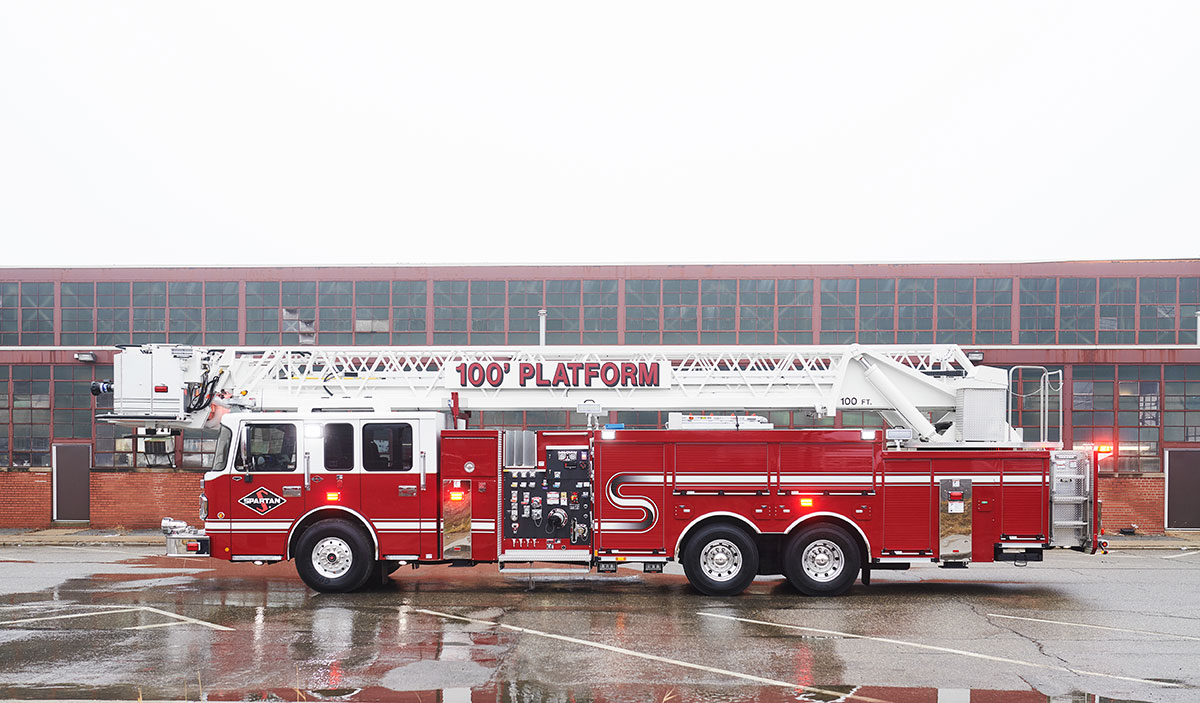

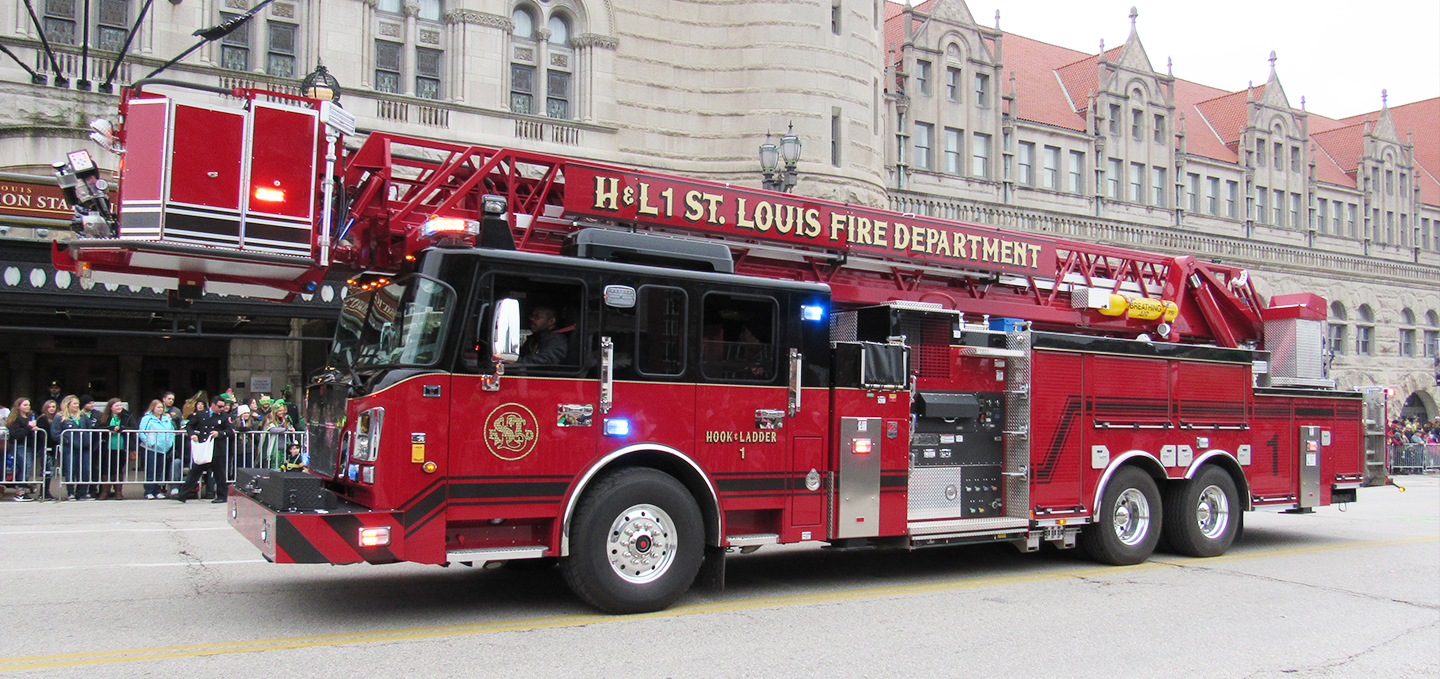

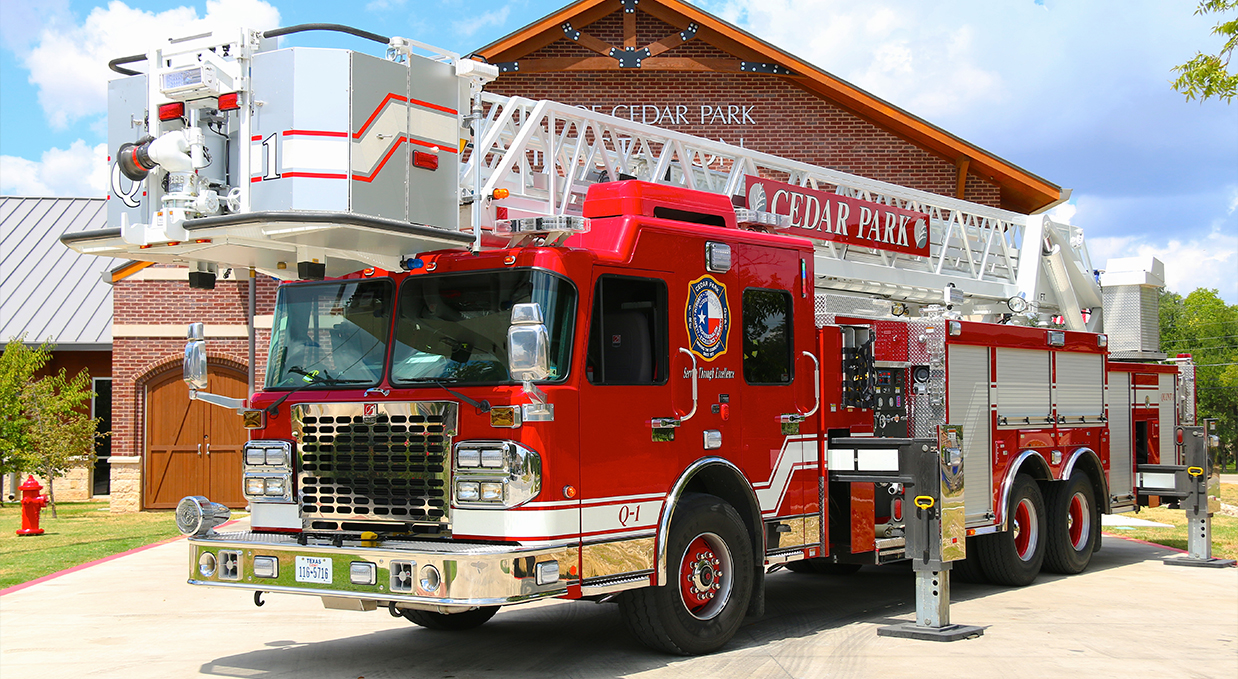

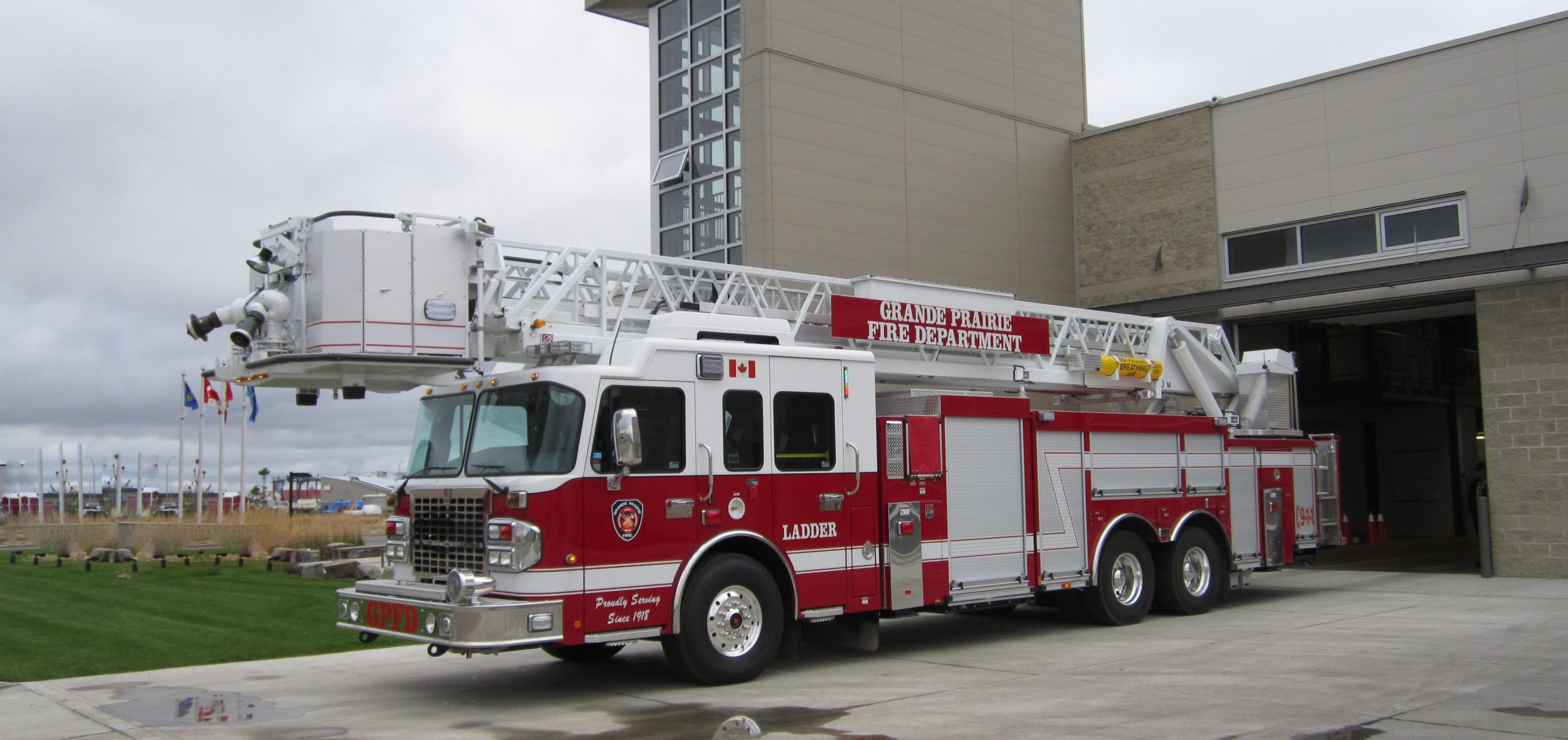

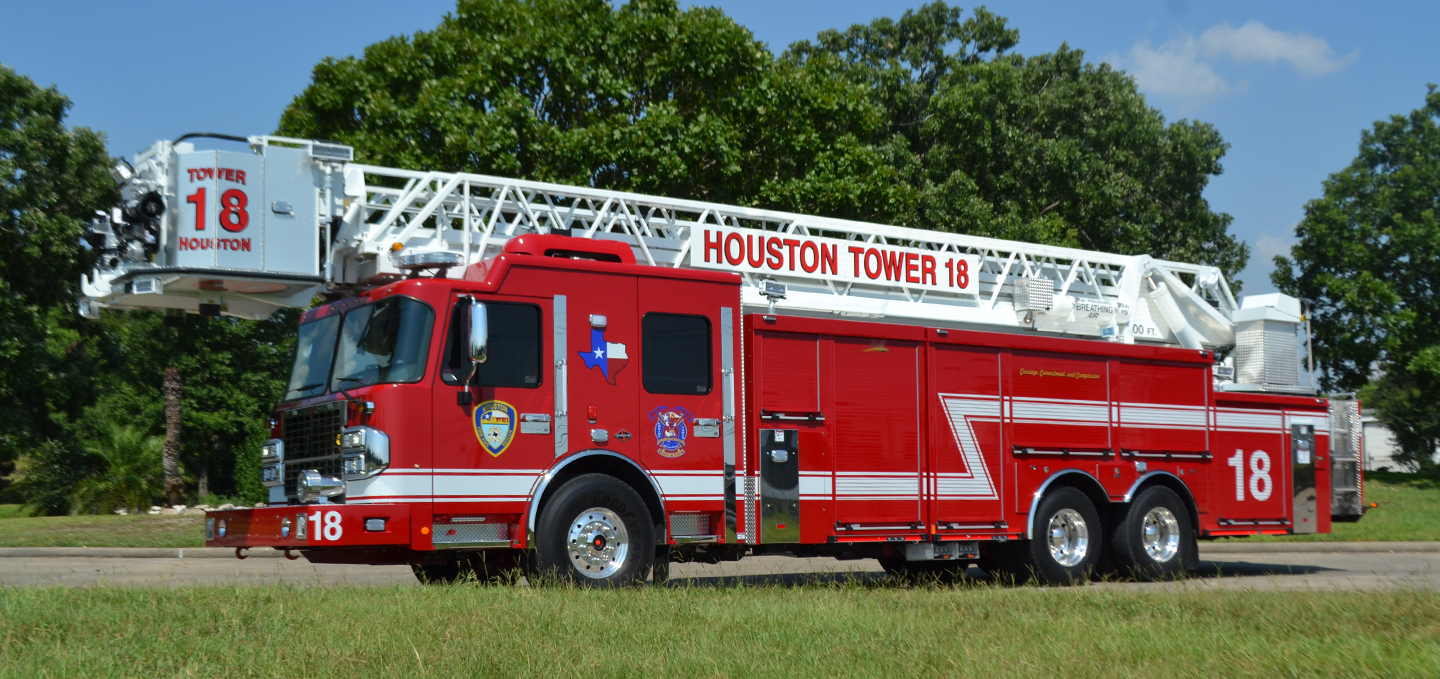

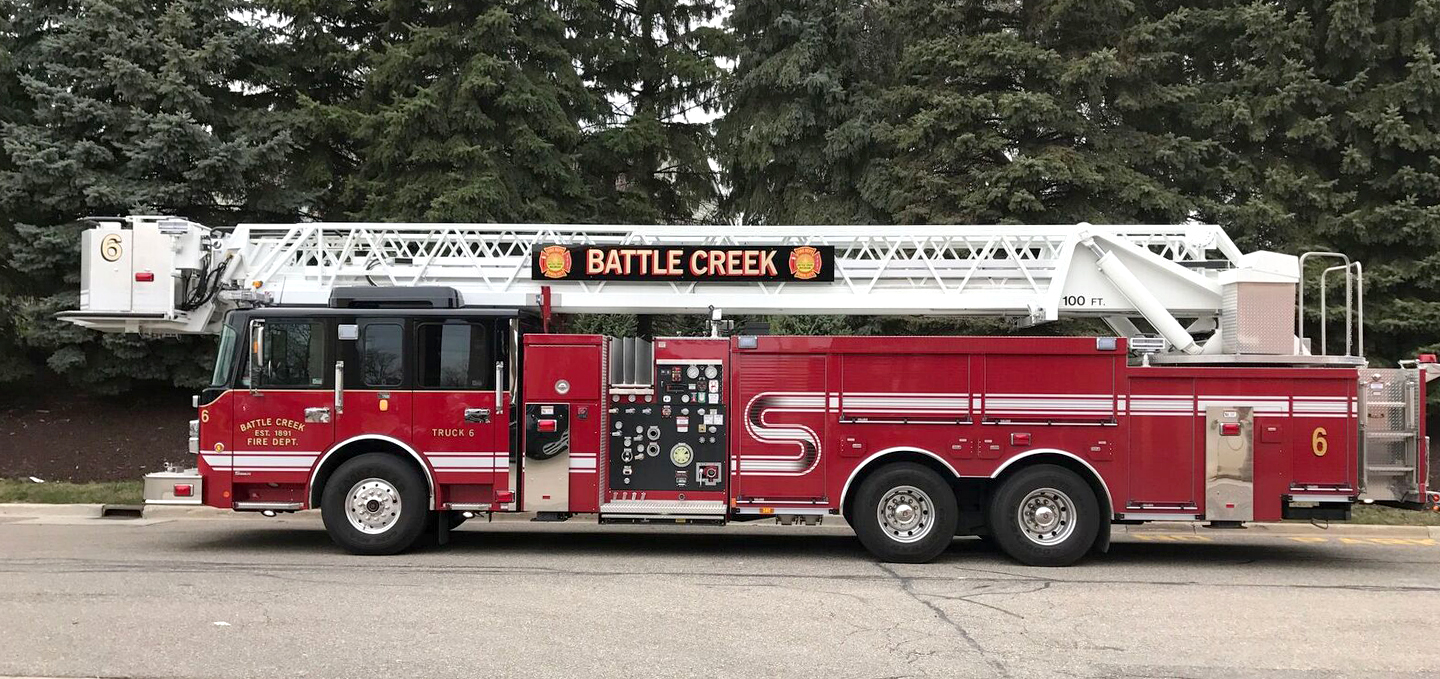

100′ REAR MOUNT PLATFORM

MAXIMIZE YOUR REACH.

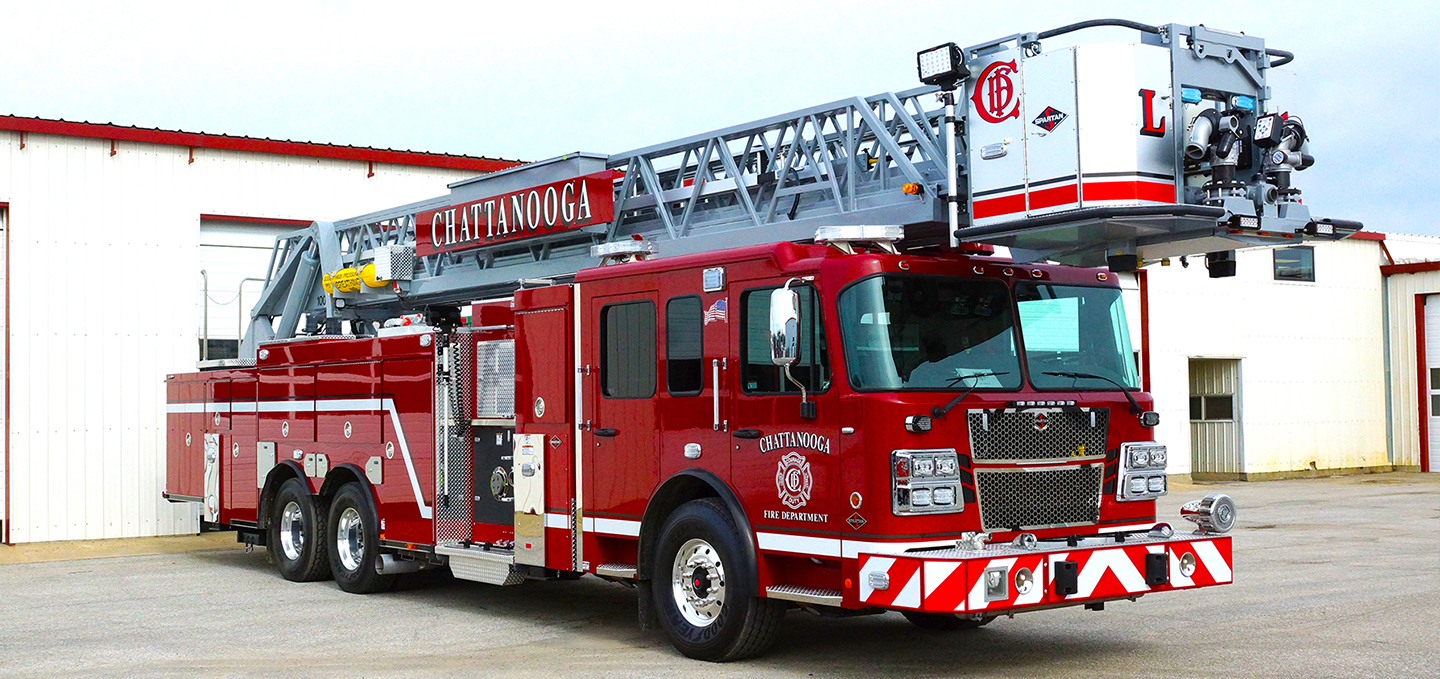

The Spartan 100′ Rear Mount Platform is the flagship of our aerial line; it sets the standard for platform performance with a 1,250-lb. dry payload and generous workspace in the basket, and it never compromises its performance ratings regardless of elevation, extension or rotational platform.

Designed for safety, functionality and serviceability, our platforms can flow large volumes of water or perform precision rescue operations. A 2,000 GPM flow rating is standard, with monitor capabilities of 45 degrees up and down, and a full 180-degree horizontal sweep.

Performance Stats

Angle of elevation: -12° to 72°
Vertical reach: 100′
Horizontal reach: 98′
Stabilizer spread: 18′
3-section ladder design

500 lb. wet/1250 lb. dry tip-load
4 H-style outriggers
2,000 GPM flow rating with monitor capabilities of 45º up and down
Full 180º horizontal sweep
Optional dual monitors

Features And Benefits

FP-4 Stabilizing System

Our unique stabilizing system places the front stabilizers just behind the cab of the apparatus. This forward placement provides superior fore/aft leveling capability on steep terrain, plus easy access to the pump panel, while reducing stress on the chassis.

Bi-fold Platform Doors

Two bi-fold doors at the front of the platform provide easy access and allow responders to easily egress to and from the platform. A hinged safety bar is located at each entrance for additional safety during rescue operations.

CP-84 Chrome-Plated Waterway

The strongest, most durable waterway in the industry, featuring a galvanized inner coating that prevents corrosion of the 84,000-psi pipe. The exterior waterway is chrome plated to provide a smooth telescopic movement throughout the entire extension and retraction of the aerial ladder.

AL-11 Aerial Logic

A totally integrated system that provides instant feedback on a ladder’s extension, location, retraction, angle, load and breathing air system status, as well as J1939 engine information.

QL-12 Electrical System

Our reliable plug-and-play system reduces the amount of non-plug connectors and makes it easy to add components and make repairs to the electrical system.

LED Rung Lights

Spartan offers blue rung lighting for superior visibility in the aerial climbing area.

Parapet Ladder Attachment

Offers an optional ladder attachment to help firefighters safely and securely climb to and from the platform and a building parapet or flat roof.

Platform Leveling System

Spartan’s platform leveling system electronically monitors the position of the platform relative to the earth and not the position of the apparatus.

Ergonomic Hose Load (EHL)

Our patented, heavy-duty hydraulic hose loader option improves firefighter safety by placing a maximum of 1,000′ of 5″ LDH within a firefighter’s reach, eliminating climbs on wet or slippery apparatus to reload a hose.
