NXT Pumpers

THE PUMPER THAT MEETS ALL YOUR CHANGING OPERATIONAL NEEDS.

The NXT pumper offers fire departments a powerful pumper in a more compact design, making it one of the most versatile pumpers in the industry. Its tight turn radius, high horsepower and maximum water flows make it the perfect solution for urban, suburban and rural operational challenges.

Designed with a low-profile pump located behind the cab under the seating extension, the NXT pumper offers added room and storage options in an already spacious cab. Its non-proprietary, market-proven pump is available with a PTO or split-shaft pump in single or two-stage operation, with parts readily available to minimize cost and maximize options.

Performance Stats

  • Pump ratings: 750 to 2250 GPM
  • Horsepower capabilities: up to 600 HP
  • Tank size: 500 to 1250 gallons
  • Available on a narrow cab with high horsepower engine
  • Full-body pump with single and 2-stage operation
  • Up to 2250 GPM pump capacity
  • Cramp angles of up to 53°
  • Available in short and medium wheelbase configurations
  • Maximized compartment space
  • Simplified pump access for easy maintenance
  • Ergonomic controls and easy access to hose and equipment

Features And Benefits

Maximum Power and Space

Configurations available with a powerful 500 HP engine in a 94″ wide cab or up to 600 HP in a 99″ wide cab.

Tor-Max and Tri-Max Body Construction

Delivers extra compartment space, reduces torsional resistance and improves structural stability.

Vibra Torq Body-Mount System

Reduces vibration and stress on the body for a smoother ride, requires less maintenance and leads to longer vehicle life.

NXT Pump Design

The pump is positioned at the rear of the cab under the seat extension, creating a safe and more ergonomic work environment with maximum performance capabilities.

Maximum Pump Capacities

Pump ratings from 750 to 2250 (single and two-stage pumps), including ratings to 1500 GPM over 9,000 ft. elevation and 1250 GPM over 11,000 ft. elevation.

Smart-View Panels

Smart-view panels provide optimum viewing angles in all light conditions for the operator.

Vertical-Swing Handles

Vertically-oriented swing handles located in the L1 compartment position the operator away from hose inlets and discharges to make opening and adjusting valves easier.

Simplified Pump Access

Tilt the cab to easily perform service and maintenance through the front of the body.

Maximized Space Usage

The NXT pumper configuration maximizes available space inside the cab and body compartments.

Custom Built-in Floor Dry

Keeps your interior compartments free from spilled material and torn bags; can be configured in a number of different areas.

Spartan One-Touch CAFS

Allows for easy control and operation without manual processes or calculations. Once the pump is engaged and water is flowing, state-of-the-art electronics monitor components in a ready state. The system injects foam into the water and air into the appropriate discharge, sensing foam/water flow and eliminating slug flow.

Independent Front Suspension

Spartan’s 20k and 24k independent front suspensions provide superior cramp angles with full air suspension, available with a range of tire sizes designed for easy service and maintenance.

Enhanced Maneuverability

The tightest turn radius and the most maneuverable chassis on the market. The turning radius cramp angles range up to 53 degrees and offer up to a 19-degree approach angle, exceeding the NFPA 1901 standards.

Resources

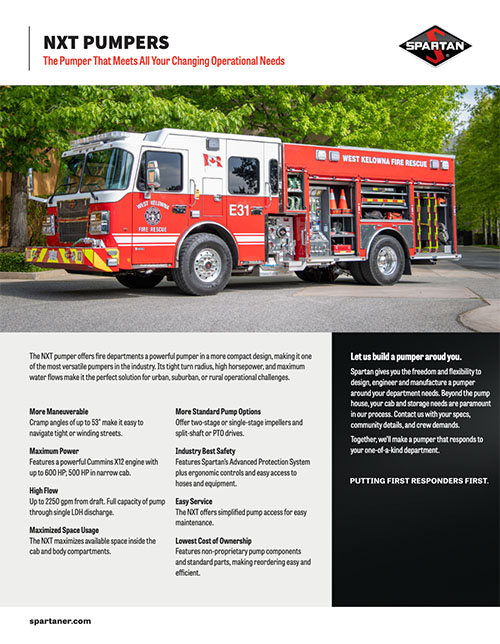

NXT Pumper
