110′ REAR MOUNT LADDER

MAXIMUM REACH AND PERFORMANCE IN COMPACT SPACE.

The Ladder Tower 110′ Rear Mount Ladder is available with a tip load capacity of 500 lbs. and a 12′ outrigger spread. The extreme-duty model has a tip load capacity of 750 lbs. with a 14′ outrigger spread. All models are engineered for a narrow stabilizer spread to allow easier positioning and faster setup on narrow streets and other tight access areas. Its horizontal reach of 99′ is rated best in the industry.

Ladder Tower offers many options that can be added to any design. Extra storage, a range of tip components, and easy access to the turntable and side hose bed locations provide a streamlined layout. Repacking of hose from the rear with the ladder in cradle is standard. Both models provide excellent ground ladder storage options. We can deliver the right product to meet your specific demands.

Performance Stats

  • Angle of elevation: -7° to 78°
  • Vertical reach: 110′
  • Horizontal reach: 99′
  • Stabilizer spread: 12′ to 14′
  • 500 or 750 lb. tip-load
  • Available in quint or traditional truck style
  • 4-section aerial ladder design
  • 12′ stabilizer spread offers 500 lbs. dry/250 lbs. wet
  • 14′ stabilizer spread offers 750 lbs. dry/500 lbs. wet
  • Up to 1500 GPM flow capacity
  • 36.75” stabilizer stroke offers maximum operating grade up to 20%
  • Short wheelbase configurations – 237”
  • 53° cramp angle offers increased maneuverability
  • 11’ 7” standard travel height

Features And Benefits

Clean Climb

A wide, unobstructed walkway allows firefighters to climb with confidence, with cables routed between handrails and out of the way to make all walking areas clear of cables and harnesses.

Safe and Easy Access

Wide egress steps and walkways provide easy access to and from the ladder.

Simple Controls

Classic or advanced aerial controls offer traditional direct hydraulic controls or electro/hydraulic controls with additional options and features.

Waterway Controls

Repositioning the waterway can be done easily with the flip of a mechanical lever.

110' Aerial Water Monitor

When positioned at the tip, the water monitor can be elevated at 30 degrees above horizontal for storefront blitz operation.

Resources

Spartan Aerial Brochure

DOWNLOAD

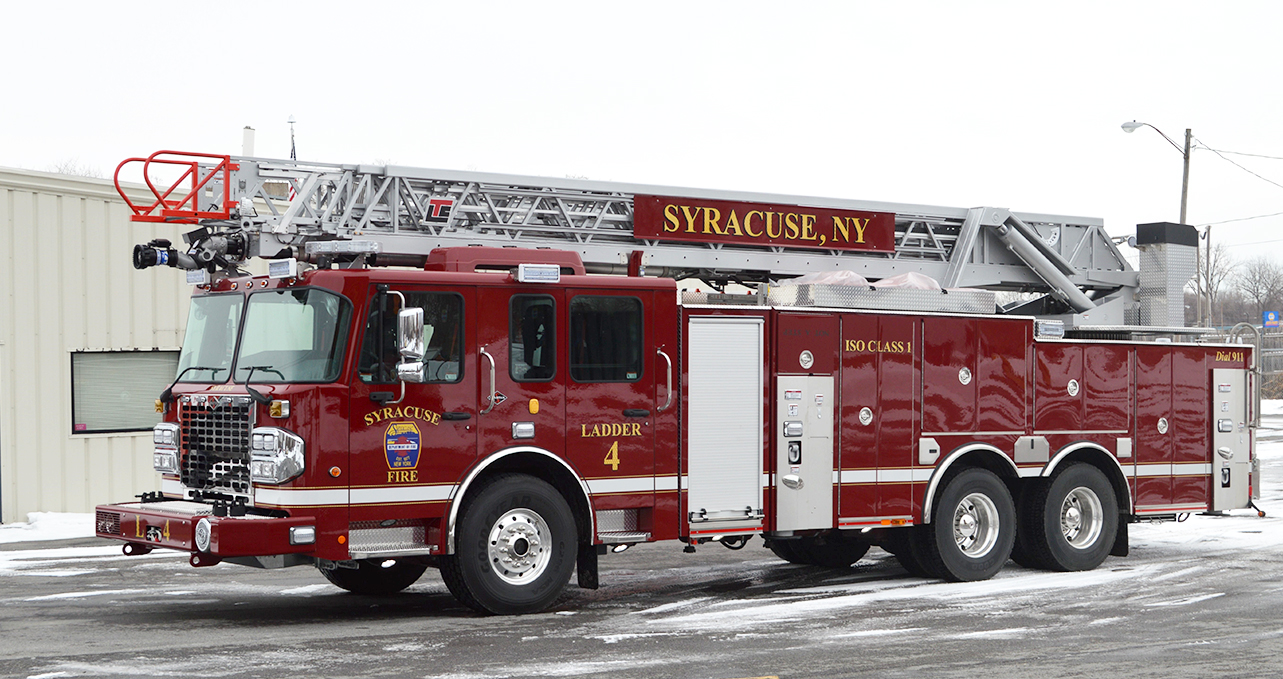

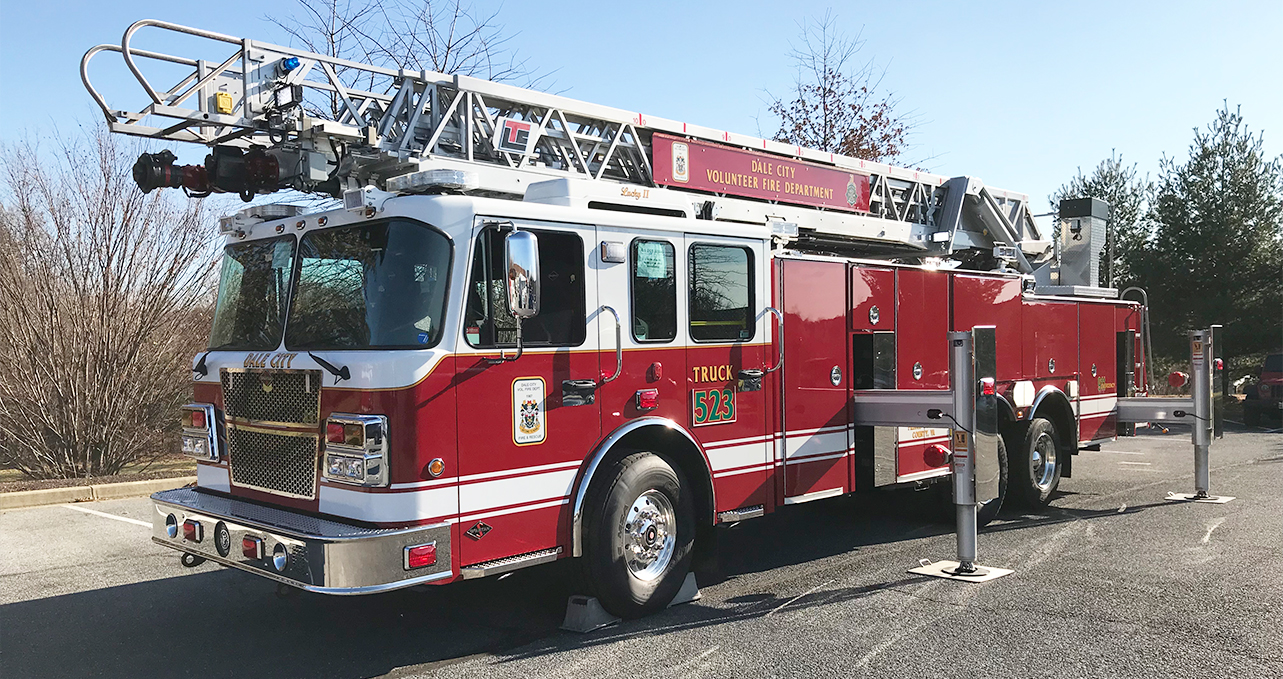

Image Gallery
